3-10L water production line can meet the different needs of a large number of consumers for water in the market. Full automatic water production line can save labor force, reduce production cost and create high income. The whole production process can reduce water pollution and produce high-quality bottled water.
Description
3L-10L PET Bottle washing machine from the washer, filling, capping and conveyor line, linear motion and pneumatic operation, PLC control, high degree of automation is a square bottle, irregular bottle is the ideal equipment, production may be appropriate to adjust the equipment package.
The machine is made of high-quality stainless steel. It will not rust and affect the filling beverage, which not only reach the standard of sanitation, but also prolong its using life.
The machine is mainly used for washing, filling sealing non carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on.
High precision filling nozzle/valves, PLC variable signal control, ensure high filling precision & filling smoothly & stably.
Machine includes cap elevator, cap sterilization, bottle washing filling and capping. All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean. No bottle, no filling, no capping, and automatic stop when lack of bottle.
This fully auto 5L mineral water washing filling capping machine can be used for 3L-10L bottle, and no need to change any spare parts when changing the bottle volume from 3L to 10L.
CONTAINERS & SPECIFICATIONS
3-10L big bottle filling machine
Model
CGF4-4-1
CGF6-6-1
CGF8-8-3
CGF12-12-5
CGF16-16-5
CGF20-20-5
CGF32-32-6
Capacity(BPH)
600
800
1000
1,500
2,000
3,000
4,000
Washing heads
4pCs
6pCs
8pcs
12pcs
16pcs
20pcs
32pCs
Filling heads
4pcs
6pCs
8pcs
12pcs
16pcs
20pcs
32pCs
Capping heads
1pcs
1pcs
1pcs
5pcs
5pcs
5pcs
6pCs
Power
2.5kw
3kw
3.5kw
3.5kw
4.5kw
5.5kw
5.5kw
Suitable Bottle shape
Round /square/Flat
Bottle material
PET/PE
Control
PLC+Touch screen
COMPLETE LINE EQUIPMENT
3-10L FILLING LINE SOLUTION

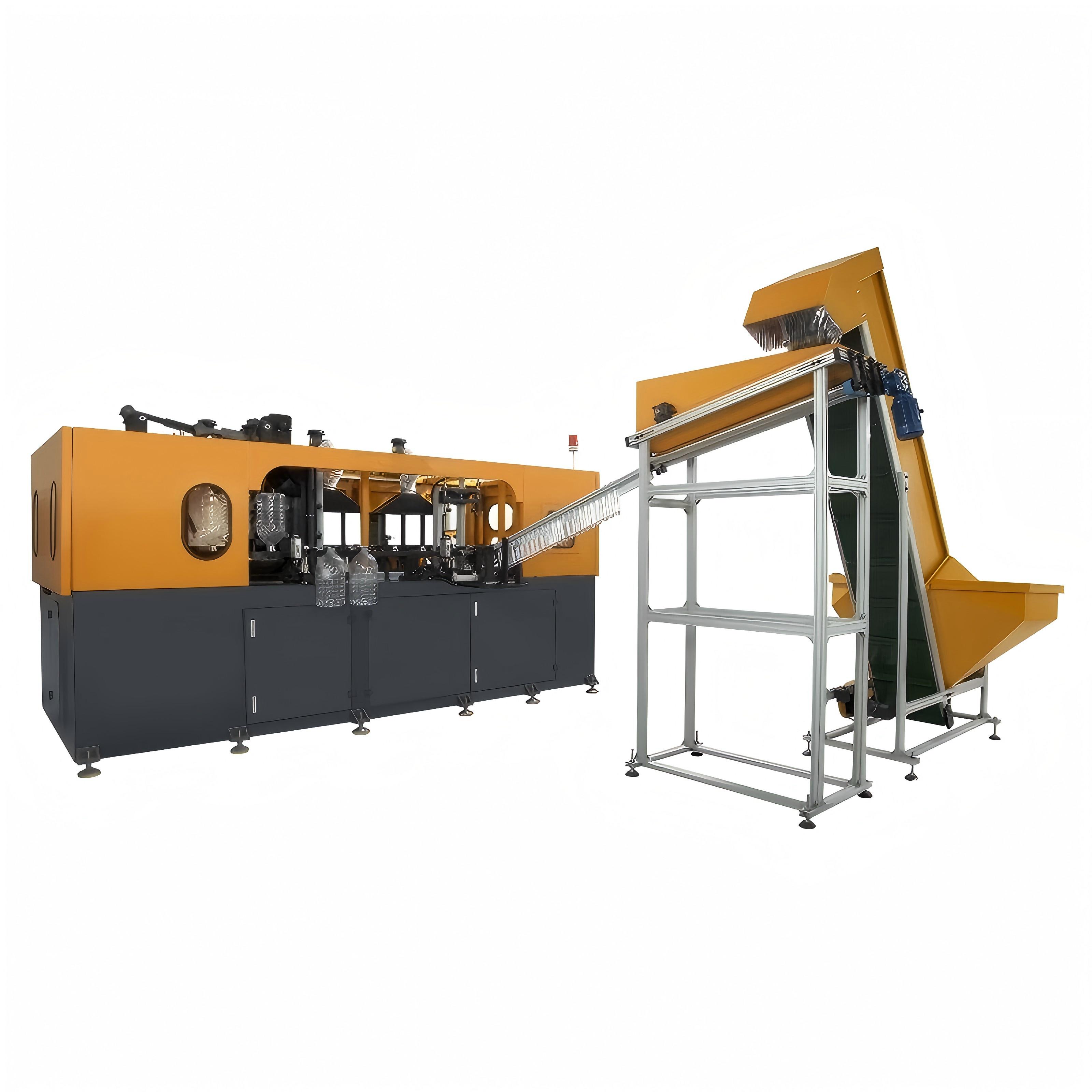

3-10 L Blow Moulding Machine
The high pressure blowing cylinder with high capacity. The cylinder works stably for any size of customer bottle type, durable and more powerful.
The seal, the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
PLC control system, the operaton is easy.

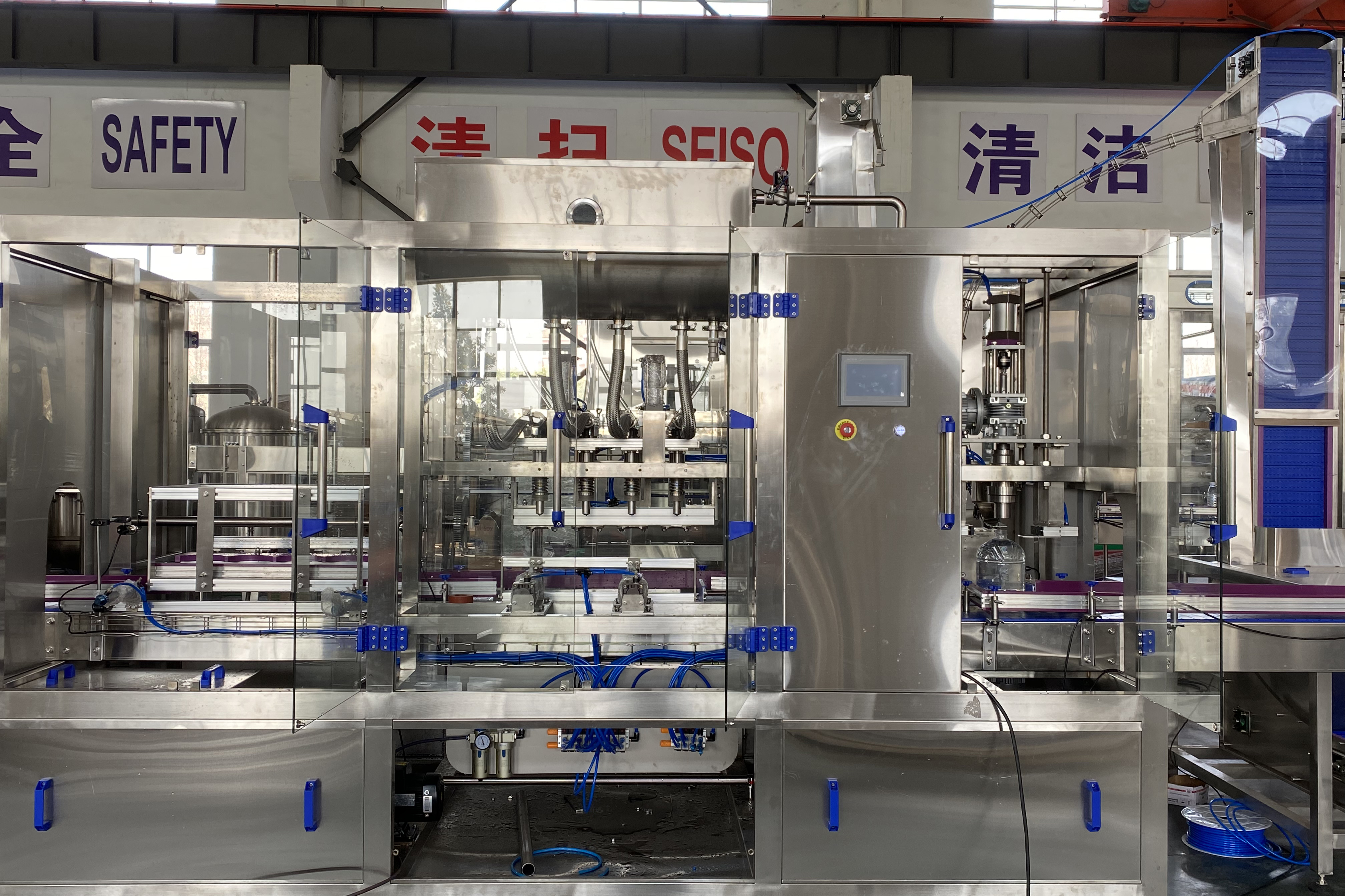

Linear Filling Machine
CGF series filling machine is specially used for filling 3L to 10L bottled water.
The machine is designed for bottles such as PP, PET, etc. It can be used for different shapes of bottles.
The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, top quality line.
The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, top quality line.
Filling time is controlled by the PLC.
The machine adopts high quality stainless steel 304 frame.

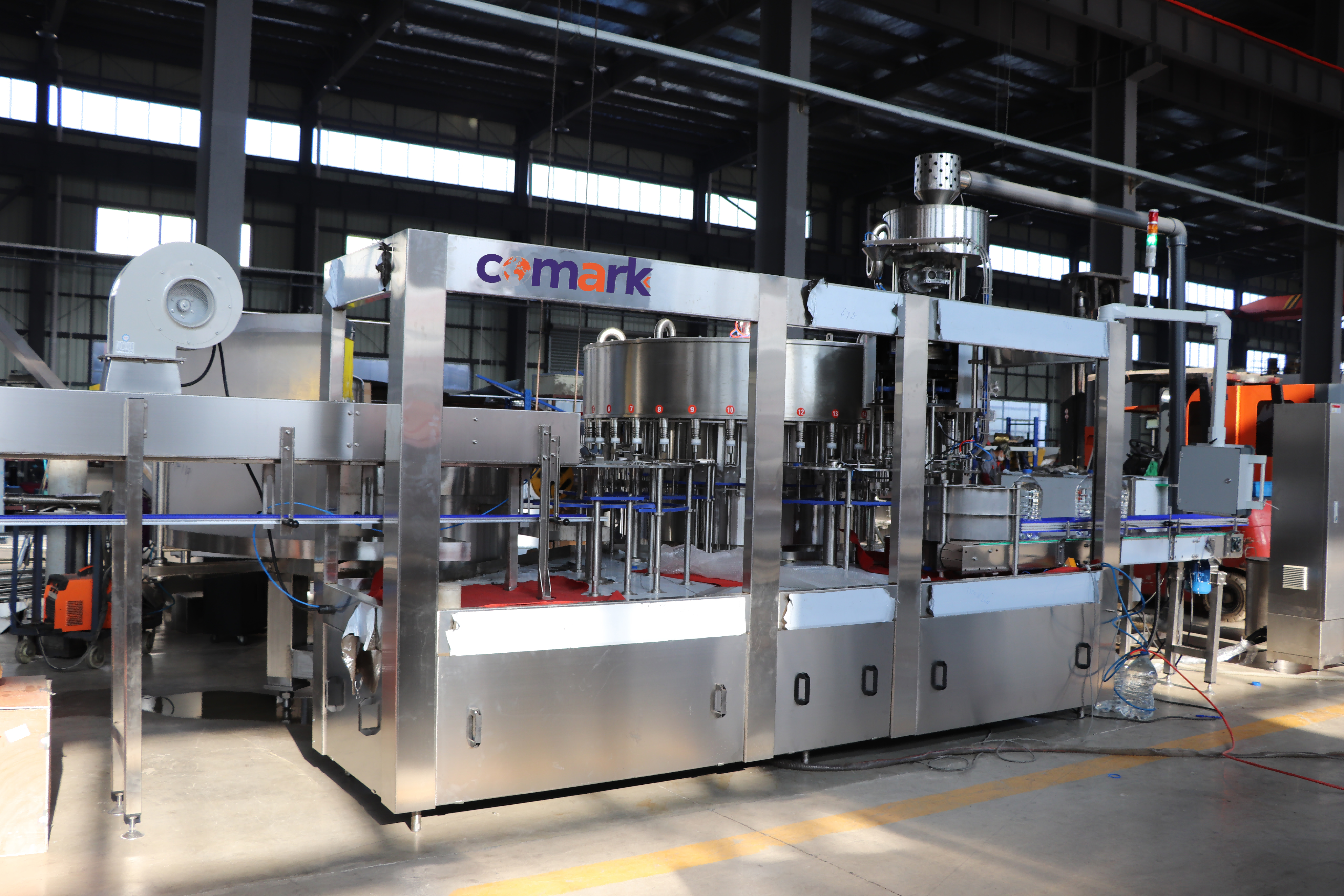

Rotary Filling Machine
This PET Bottle Water Filling Machine ( Washing Filling Capping 3 in 1 bottling Machine ) for big bottled non carbonated drinks such as purified water and mineral water, such as 3 liter bottle , 5 liter bottle , 6 liter bottle, 8 liter bottle , 10 liter , even 15 liter bottle .
1、Washing: hold the bottle mouth tightly, rotate the filling plate and pour the bottle; Internal flushing and external spraying make the bottle completely clean.
2、Filling: gravity filling with bottle mouth; The special reflux filling valve can avoid the leakage after filling and accurately control the liquid level.
3、Capping: magnetic torque bottle holding type, which can minimize the damage rate of bottle cap and optimize the capping performance.

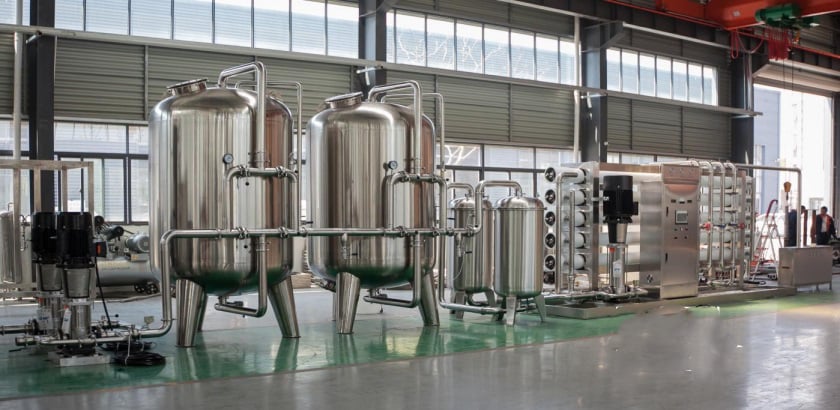

Water Treatment System
The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane.
More than 97% soluble salts and 99% glues, microbe, particulate and organic substances, etc., can be removed with the reverse osmosis. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water.

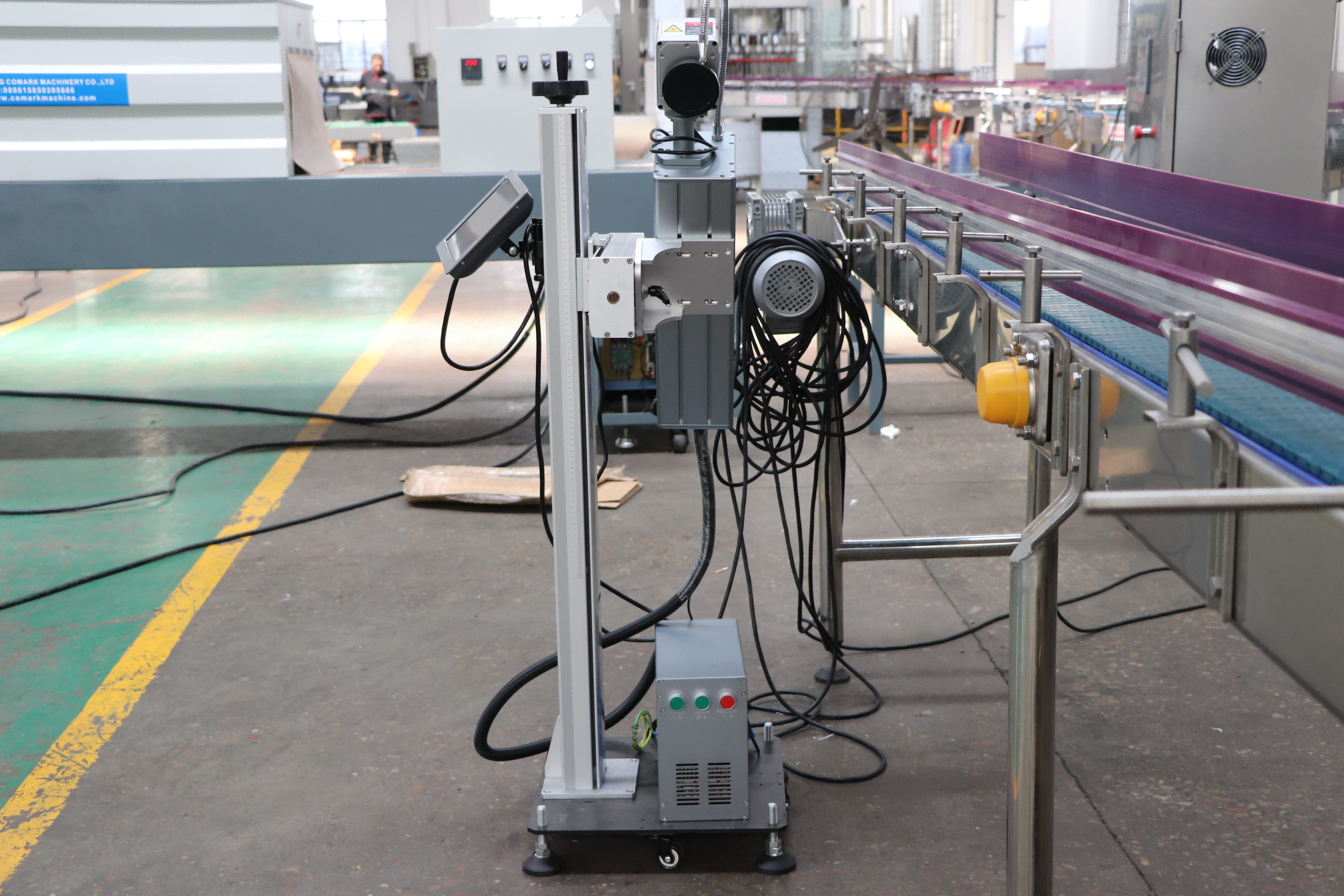

Auto Printer Machine
8-inch full-color touch-screen control panel, stylish and easy to operate
Simple appearance and easy-operate interface
Multi-language design
Printhead Thermostat to keep printer away from blocking

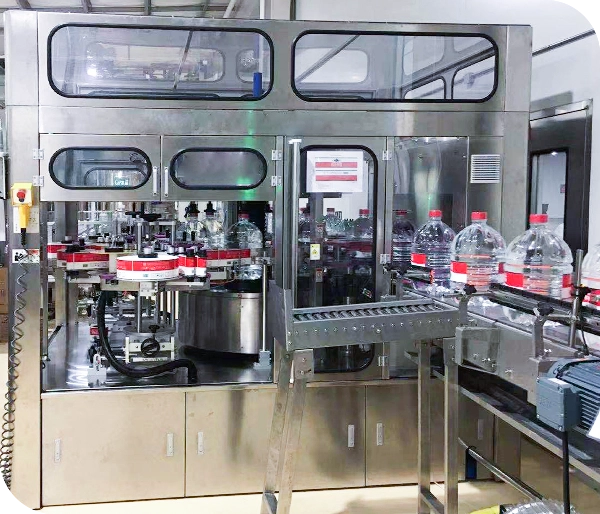

Adhesive Labeling Machine
The adhesive sticker labeling machine incorporates latest sophisticated User Friendly Label Dispensing applicator System with choice of Stepper or Servo Driven System.
Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds.

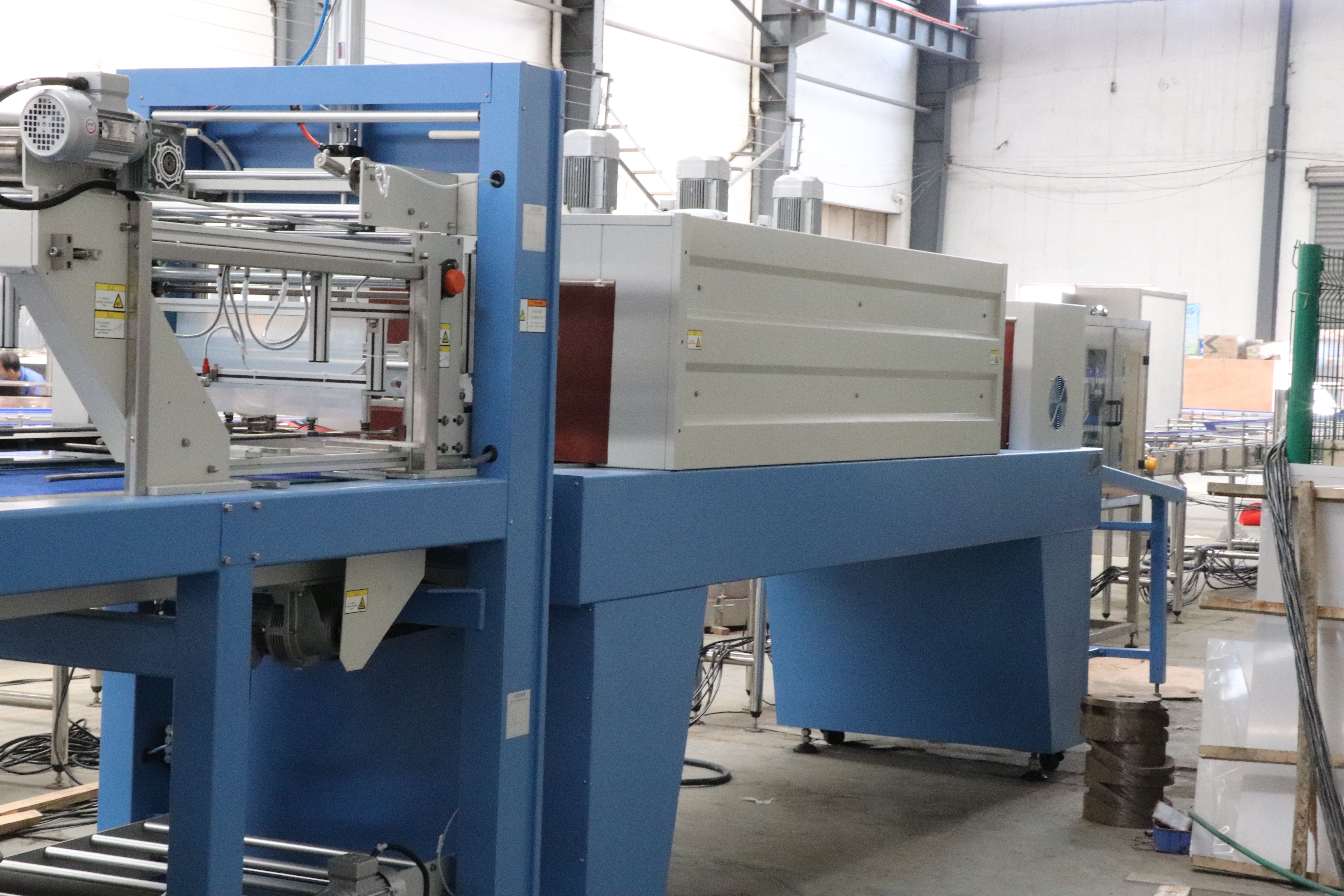

PE Film Warping Machine
PE film warping machine is used for the 3-10L can use 2*2 PE film package machine or carton package machine.
CUSTOMER PROJECTS
customized projects of water production line
Project :PET bottled water production line
Capacity :24000 BPH
Country :Saudi
Established year :2019
Project :3-10 L productuon line
capacity:1000CPH
Country :china
Established year :2016
Project :energy drink /soft drink canned production line
Capacity :6000-12000 CPH
Country :tailand
Established year :2020
Project :bottle juice production line
Capacity :12000 CPH
Country :china
Established year :2016
Project : sparking water /soft drink production line
