Water is a necessity for our body, there are various kinds of water in the market, like, natural spring water, purified water, carbonated water, flavored water... Which processes can achieve qualified water through the Food and Drug Administration? How to estimate the investment of new water project? How to achieve the maximum benefit with speed, accuracy and light weight bottles? Comark Machine, the expert in liquid product filling, will always provides you with the best solution for your products. We can supply you from 2000-24000 BPH complete turnkey solution for your reference.

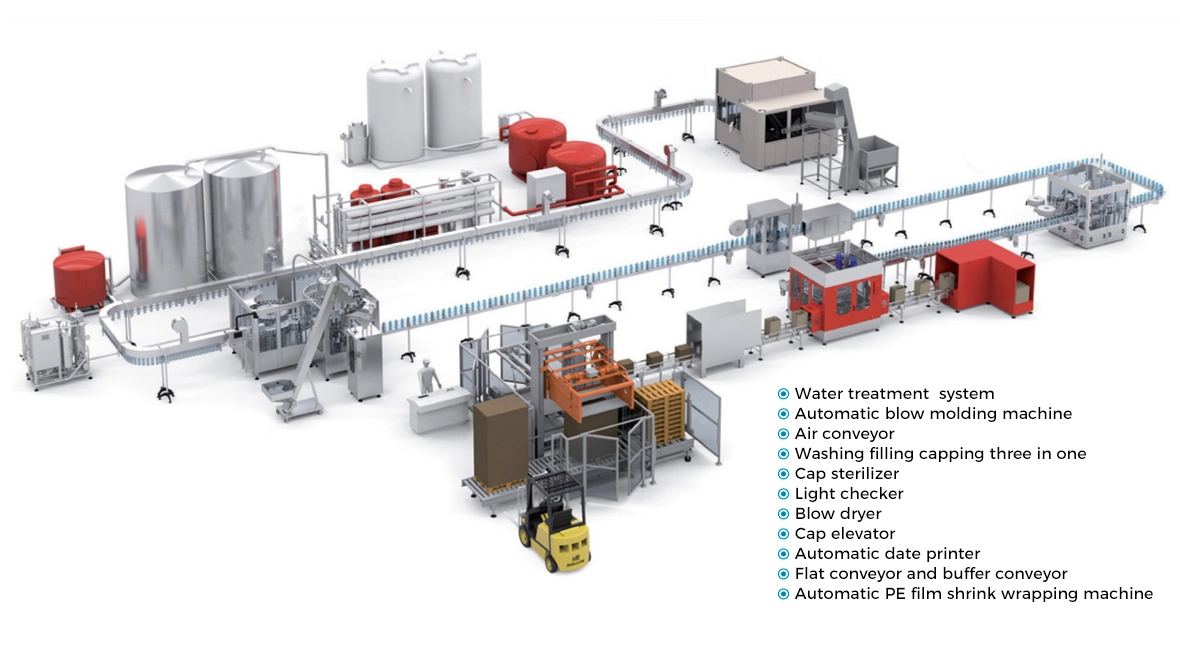

3D Virtual Show

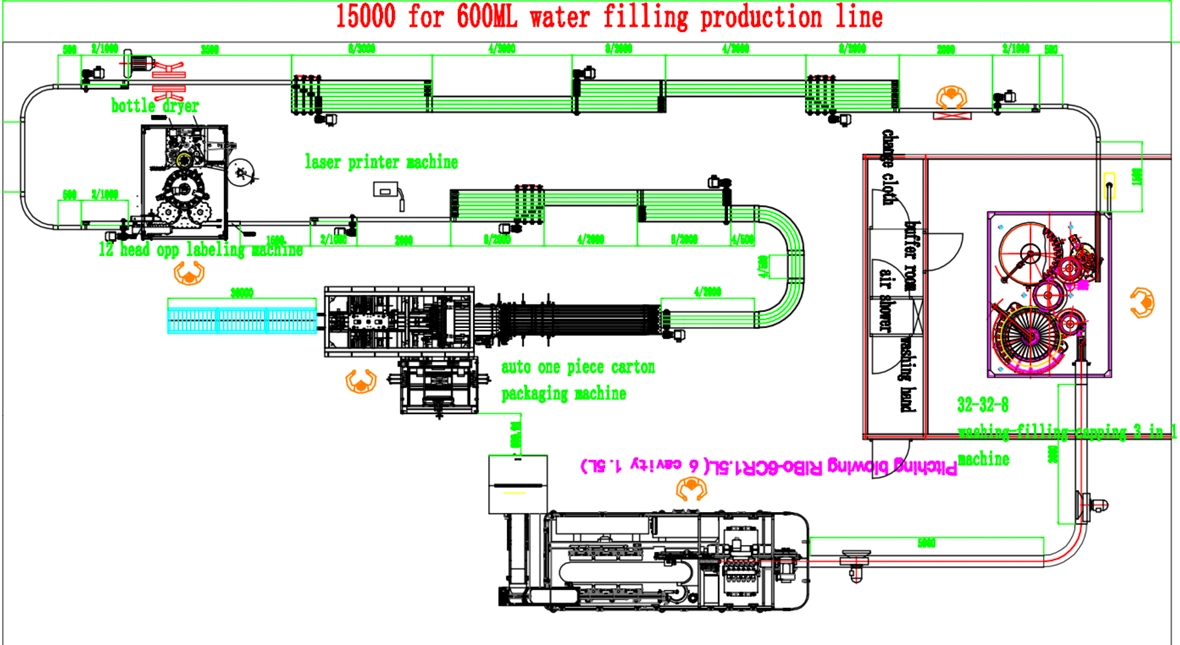

CAD Configuration
BRIEF INTRODUCTION OF
WATER FILLING PRODUCTION LINE
Model
CGF8-8-3
CGF14-12-5
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-10
CGF50-50-12
Capacity
2000-3000
4000
6000
12000
15000
20000
24000
PET bottle specification
Bottle diameter 50-115 mm,Height 160-320 mm
Floor area
300 m²
400 m²
600 m²
1000 m²
1500 m²
2000 m²
3000 m²
Total power
100kva
100kva
200kva
300kva
450kva
500kva
600kva
Operator workers
8
8
6
6
6
6
6
COMPLETE LINE EQUIPMENT
200ml-2L Bottled water production solution

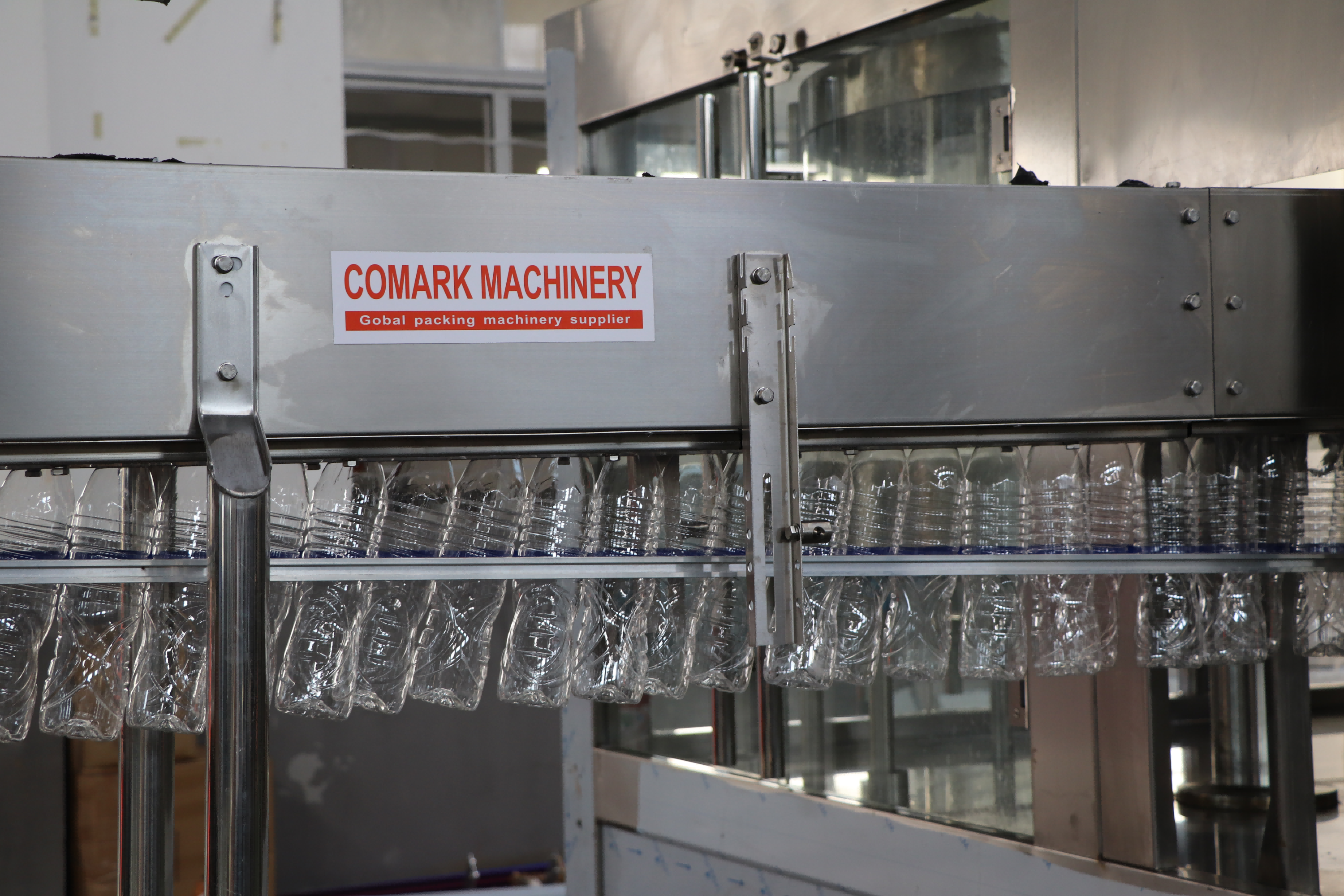

1.Air Conveyor
Adopt air conveyor system with high efficient filter to feed bottle, this can keep the inside of the filling machine clean.
With bottle neck holding in the whole course and protect bottle block device.
The bottle feeding method with the air duct and the bottle feeding wheel directly connected.
The transition dial adopts a bottle-mouth stainless steel dial.

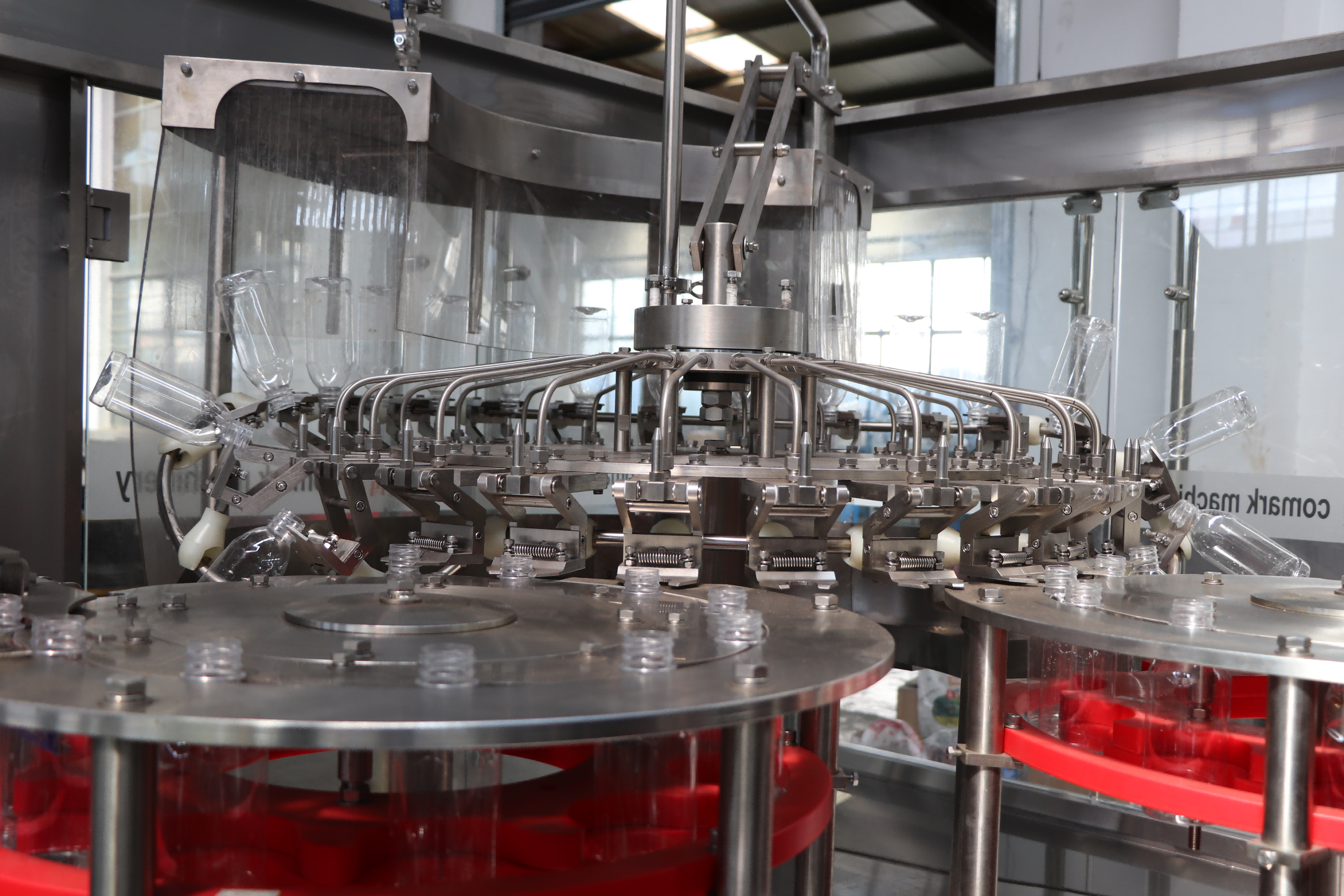

2.Washing Part
The rotary wheel is a fully stainless steel welded structure.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The riser is driven by driving system positioned inside machine frame via gear transmission.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

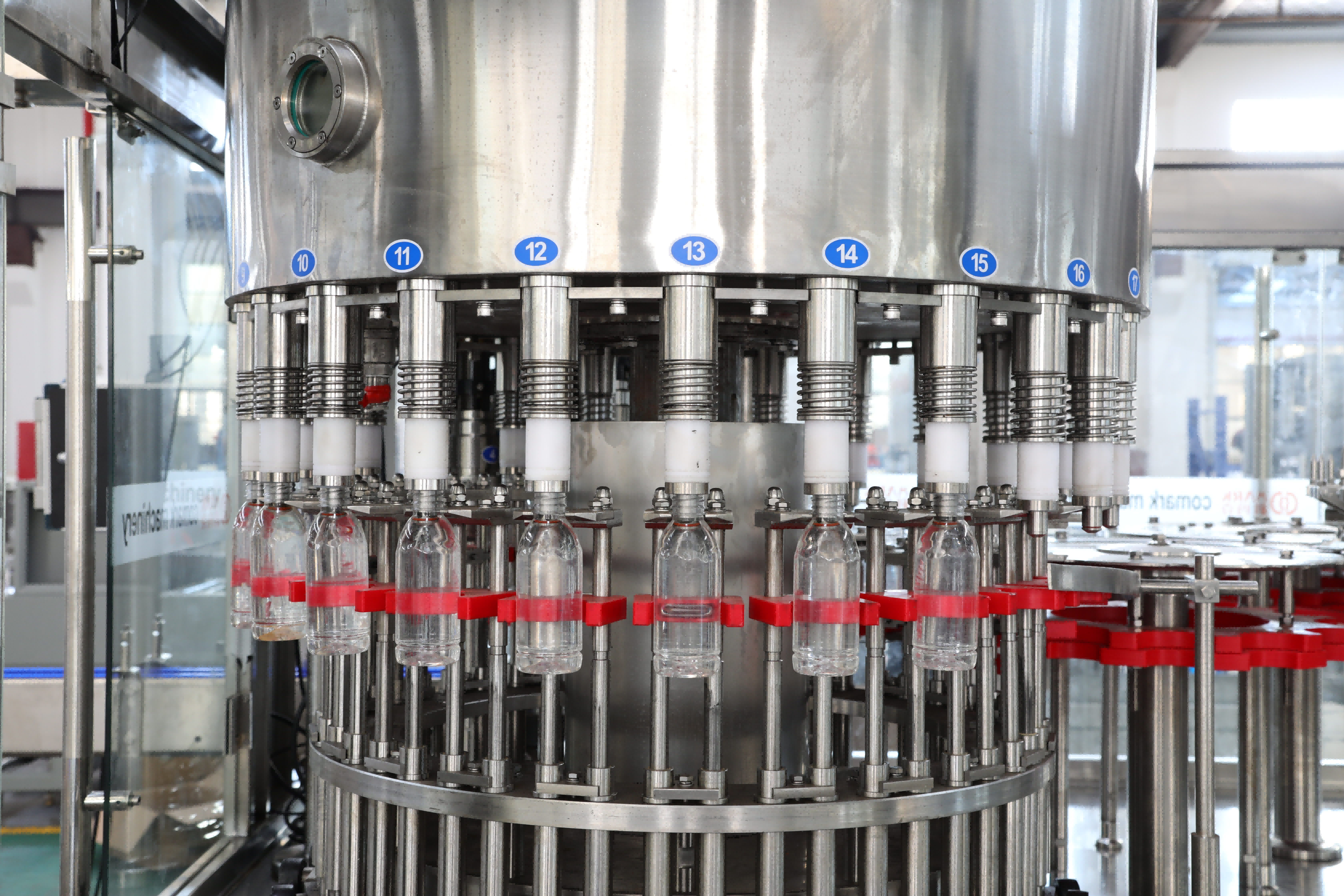

3.Filling Part
Rotary wheel fully made of stainless steel SUS 304.
Filling valves are made of SUS316L.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball.
Filler is driven through gears inside the machine frame.

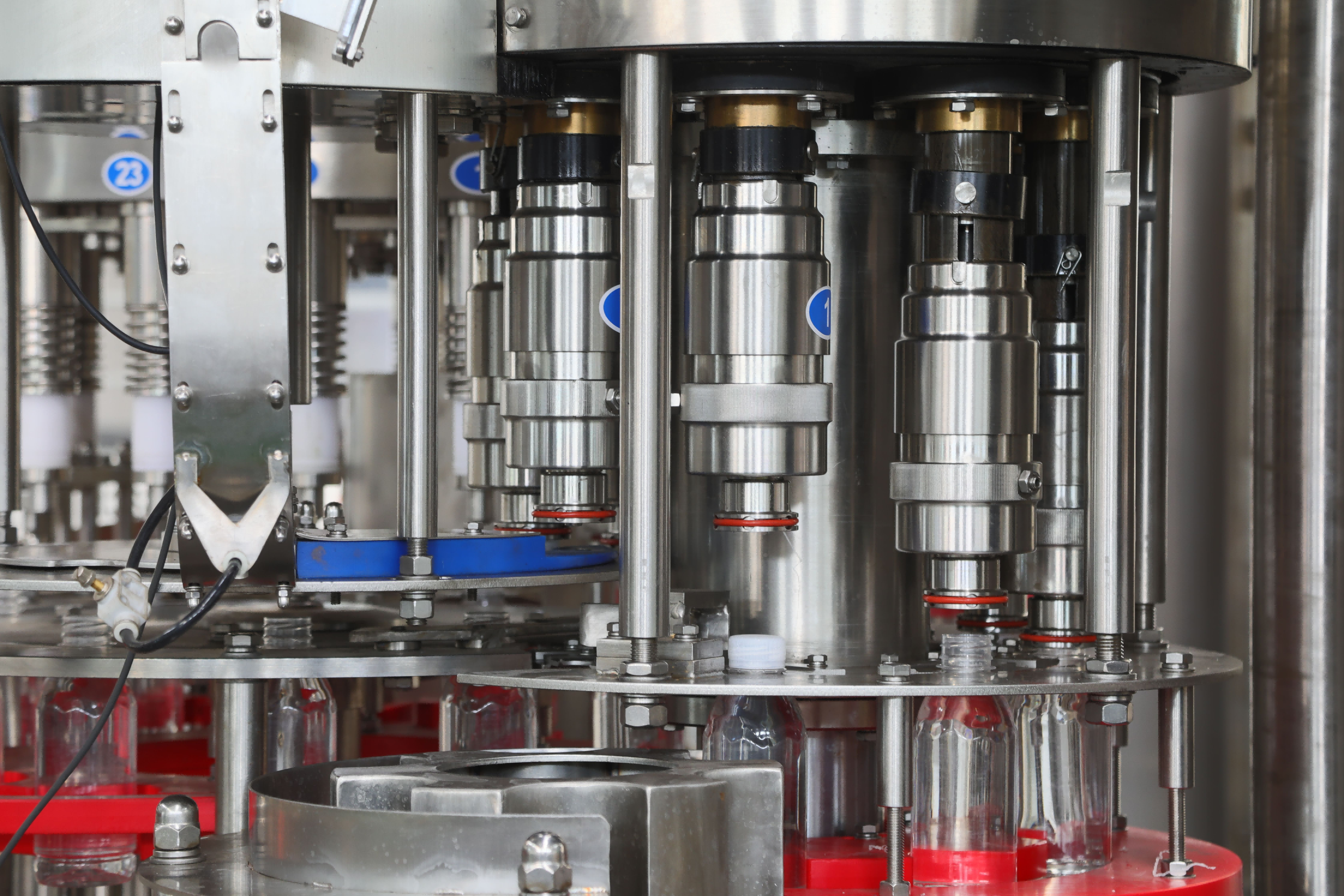

4.Capping Part
Efficient centrifugal cap sorting method, with less cap abrasion.
The cap-dropping rail is equipped with a mechanism for preventing the reverse cap from passing through and removing the cap. When there is no cap on the cap-dropping rail, the machine will automatically stop running, which can effectively avoid the appearance of uncapped bottles.
The cap sorting device is equipped with a cap missing detection mechanism, which is used to control the start and stop of the bottle cap elevator.
Magnetic constant torque capping head, the capping effect is stable and reliable, and the capping defective rate is less than 0.2%.
COMPLETE LINE EQUIPMENT
200ML-2l Water filling line

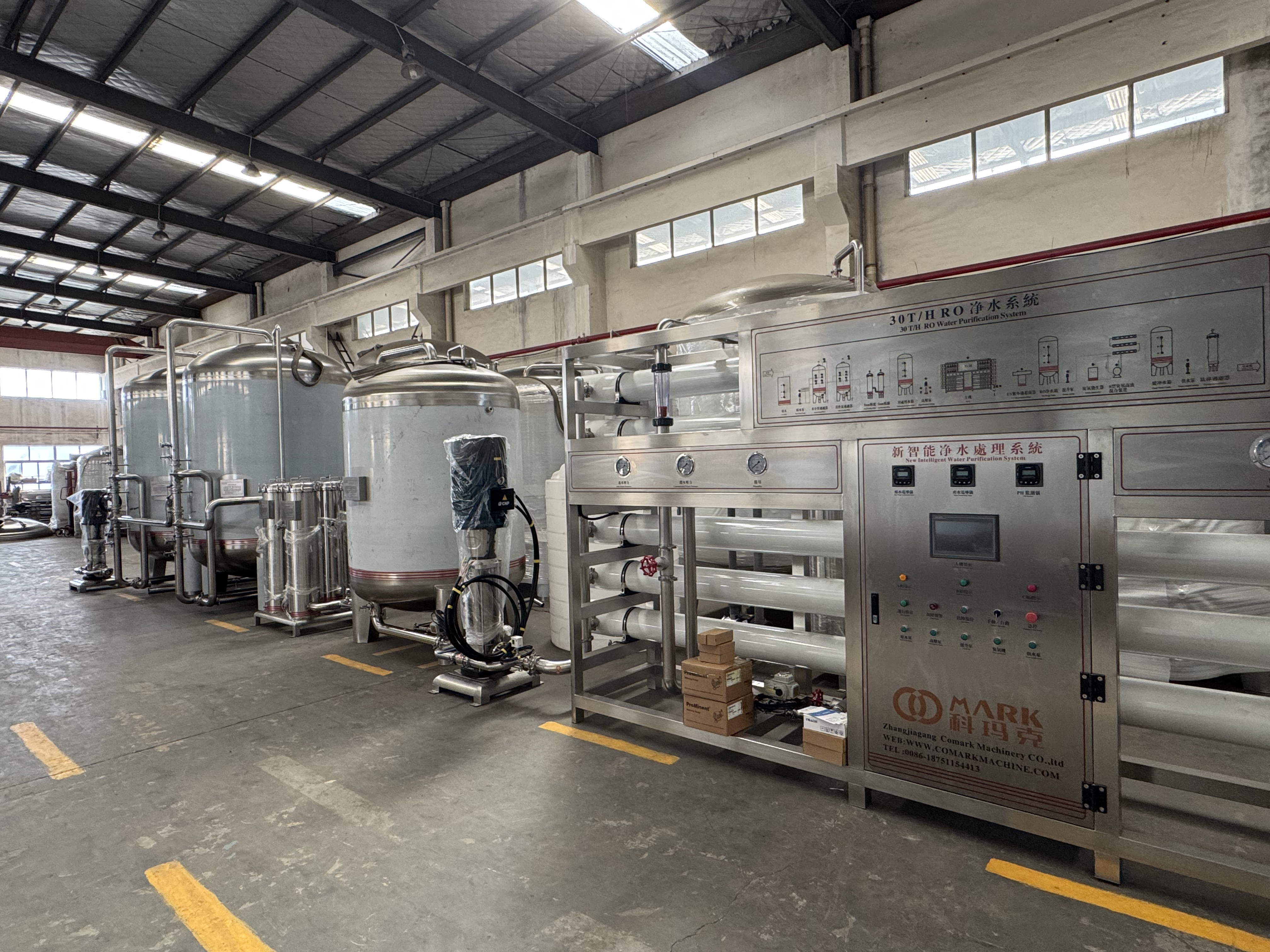

Water Treatment System
Main application
Pure/Mineral/Spring Water Production Industries
Juice Beverage Production Industries
CSD Beverage Production Industries
Wine Production Industries
Main component
Raw water tank/Raw water pump
Silica sand filter/Active carbon filter/Sodium ion exchanger/Precision filter can be used stand alone or integrated in-line and matching filling equipment speeds
Ultrafilter / nanometer filter / RO reverse osmosis system
Electrodialysis device / Sterilization system (UV device, ozone device) product water tank

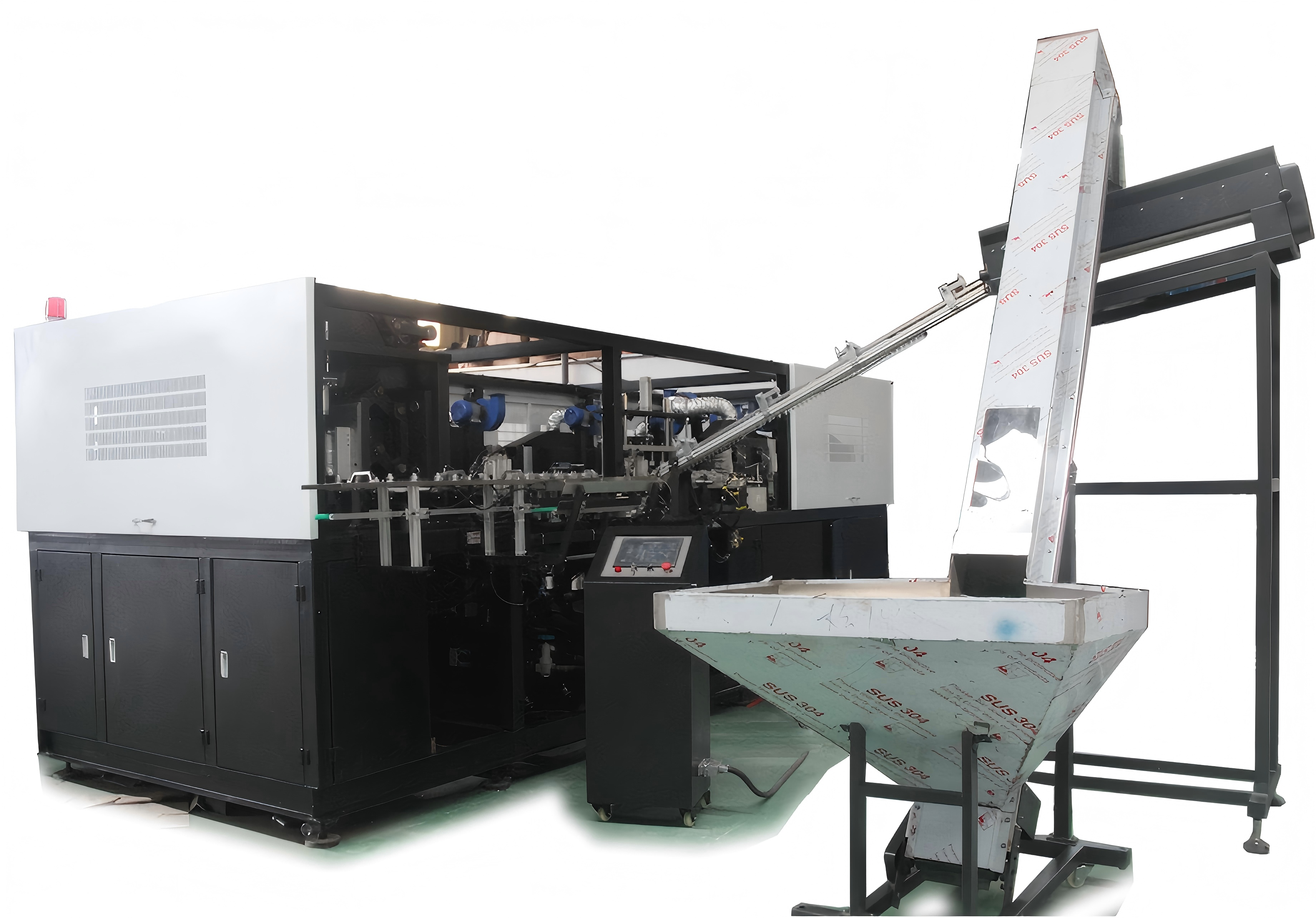

Pet Bottle Blow Molding Machine
Main feature
Blow moulding machine 1,000-24,000bph, and 0.25-2L PET bottles are available.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle, cosmetics, wide-mouth bottle and hot fill bottle, etc.
CSD Beverage Production Industries
Wine Production Industries
Blowing process
Preform inlet controlling
Bottle preform heating controlling
Blowing technology controlling
Bottle check and outlet

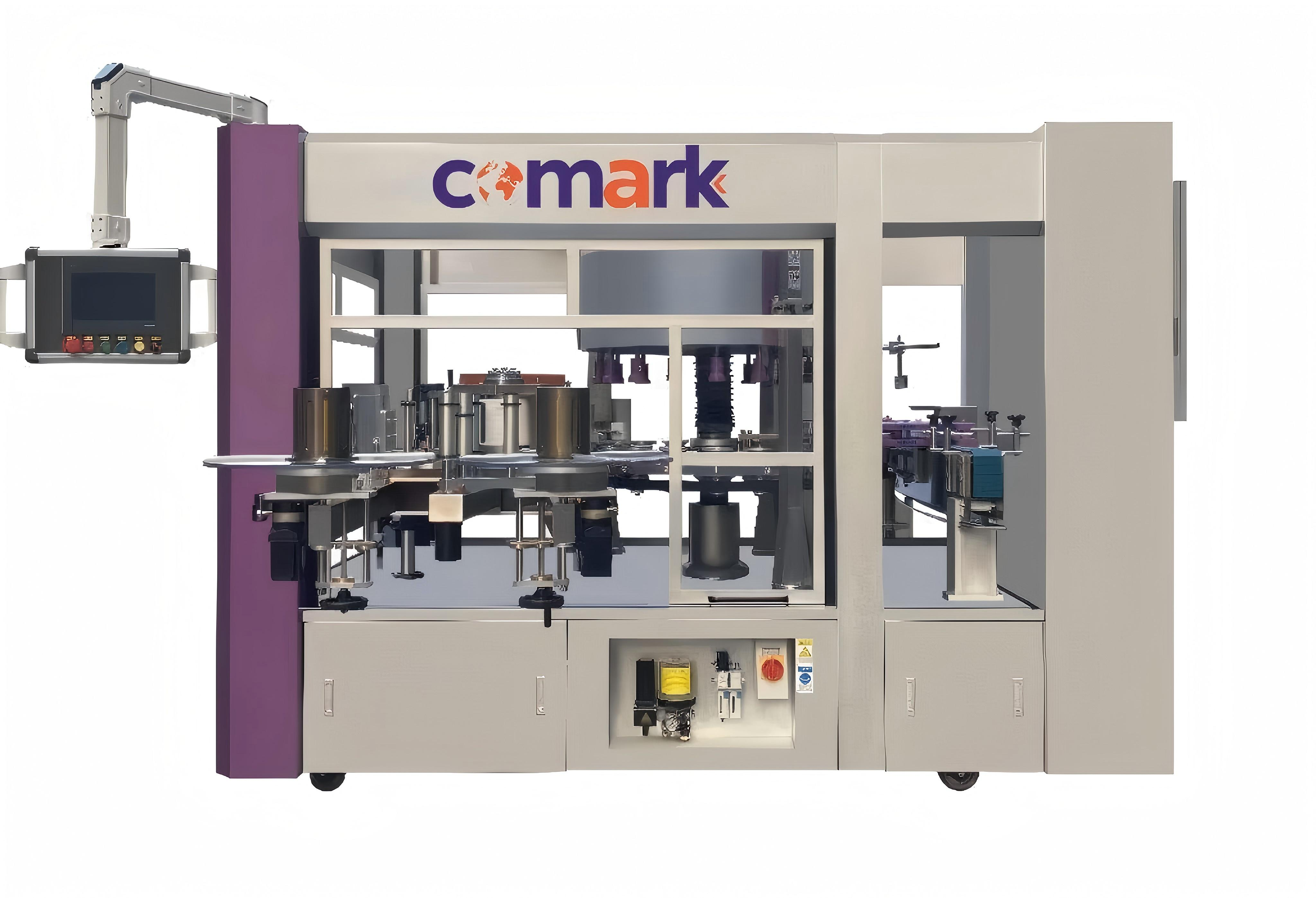

OPP Hot Glue Labeling Machine
Main feature
The machine mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water, food, etc.
High speed, high accuracy, stable performance.
Easy to operate and look elegant appearance.
Machine type
OPP Hot melt labeling machine
PVC Shrink labeling machine
Adhesive Sticker labeling machine

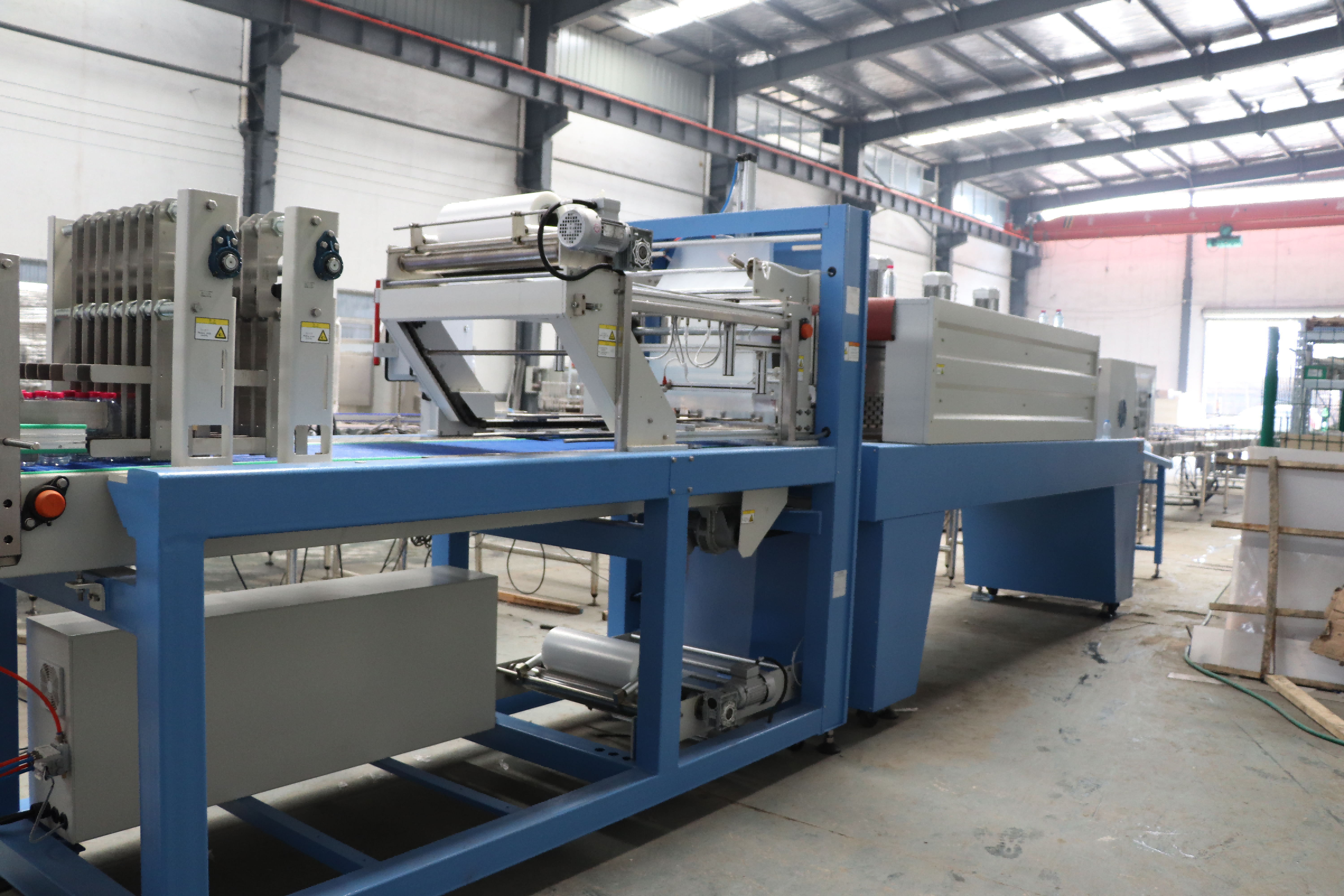

PE Film Packaging Machine
Main feature
The machine is designed for beer, beverage, purified water, fruit juice, dairy products and other drinks automatic packaging production line.
Compact &artistic shape. The frame is novel, unique.
PLC program automatic cycle control, stable and reliable performance.
Machine type
PE film shrink wrapping machine
Half-tray shrink wrapping machine
Carton box packaging machine
CUSTOMER PROJECTS
customized projects of water production line
Project :PET bottled water production line
Capacity :24000 BPH
Country :Saudi
Established year :2019
Project :3-10 L productuon line
capacity:1000CPH
Country :china
Established year :2016
Project :energy drink /soft drink canned production line
Capacity :6000-12000 CPH
Country :tailand
Established year :2020
Project :bottle juice production line
Capacity :12000 CPH
Country :china
Established year :2016
Project : sparking water /soft drink production line
