1. Main parameter：

Machine size: 2100Lx850Wx2000H (mm)

Machine body material and weight: SUS304, 700Kgs approximate (main machine)

Applicable bottle diameter rang: Ф28 mm-Ф125mm

Applicable bottle height: 30 mm -250 mm

Label length: 28 mm ~120mm, label edge transparent should more than 5mm

Label thickness: 0.03mm~0.13mm (PVC, PET, OPS, applicable)

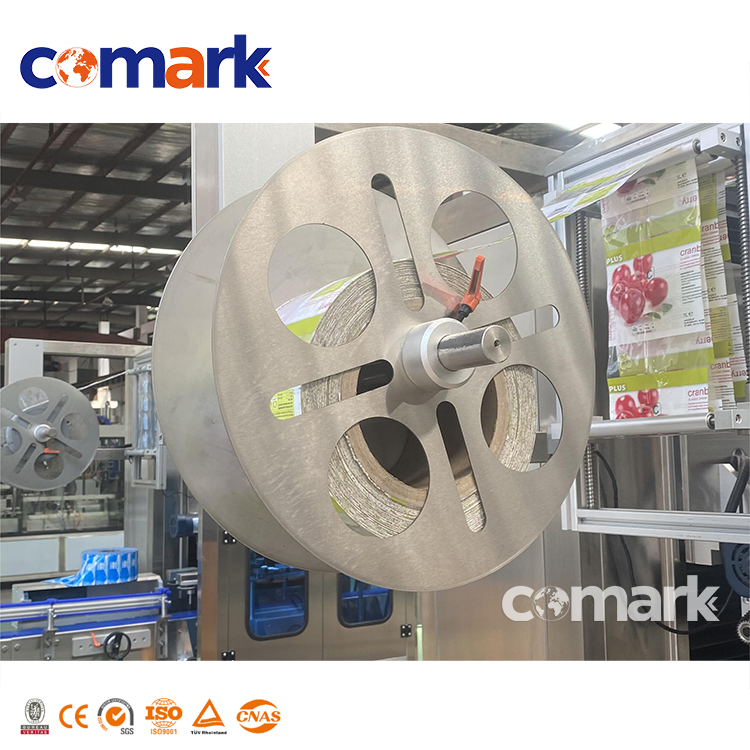

Paper pipe inner diameter: 5”~10”，can be adjusted freely.

Capacity: 100b/m (Round bottle, after filling, bottle outside should be dried, label length whthin100mm)

Power specification: ∮3, 380/220VAC

Power consumption: 1.5KW

Conveyor: Standard 2M (This machine does not include conveyor connector, motor.)

2. Producing efficiency: 150b/m, label feeding round plate, microcomputer control, auto sensor, change label quickly, cut precisely.

3. Capacity: OG-150 Model is smaller than the other model but it takes the same PLC, fixing module, stepping motor, touch screen as the higher speed machines.

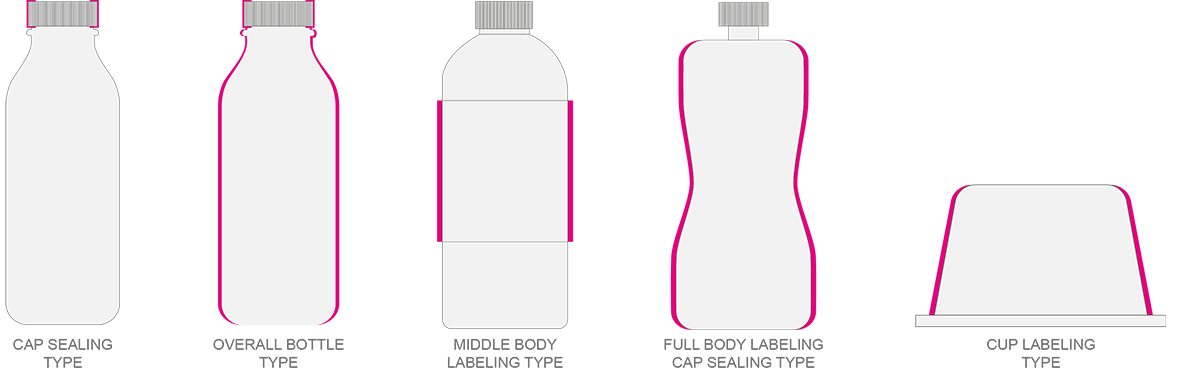

4. Applicable bottle: All kinds such as round bottle, square bottle, flat bottle, curved bottle and so on.

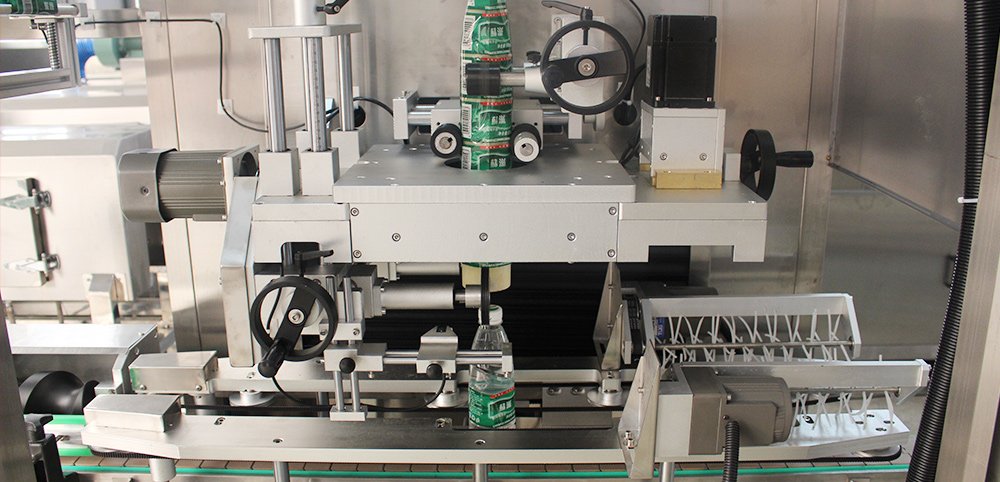

The sleeve labeling machine can be applicable to various kinds of bottle, no matter round bottle, flat bottle, square bottle or other irregular shape of bottles, and the container can be galss, plastic or othes.

The sleeve labeling machine is widely used for the packing of

sport drinks furit juice, water, milk,condiments, daily necessities.

Multiple bottles can be apply to one set of sleeve labeling machine by replacing the changing parts.

The cost of the changing part is cheap and easy to operate.
