Full Automatic 15000BPH Mineral Water Filling Production Line

Full Automatic 15000BPH Mineral Water Filling Production Line

The machine combines washing, filling and capping three function in a body,used to produce plastic bottled mineral water,purified water machinery. The whole process is automatic, Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient. The CGF series bottled water filling line can achieve different output: 2000 / 4000 / 6000 / 8000 / 10000 / 12000 / 16000 /18000 /20000 / 24000 BPH.

                                                        Product Paramenters

The complete production line:
☑PET bottle blow molding machine
☑Water treatment system
☑Bottle washing filling and capping machine
☑Ink code printer / Laser code printer
☑PVC shrink sleeve / OPP hot glue / Adhesive sticker labeling machine
☑PE film packaging machine / Carton packaging machine
☑Automatic palletizer

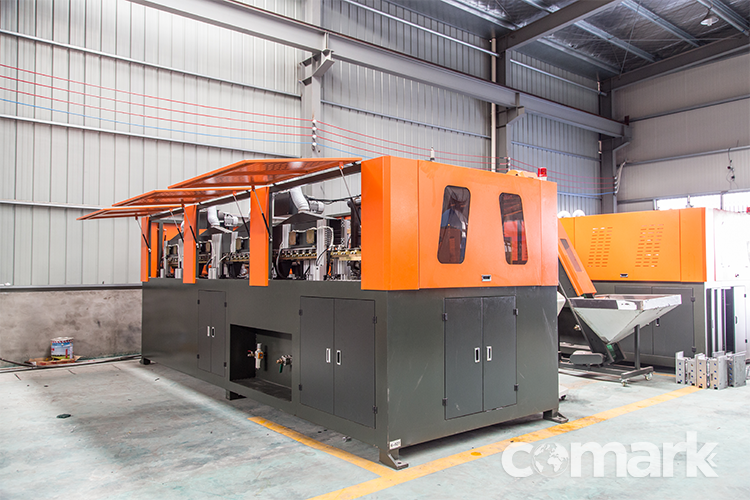

PET bottle blow molding machine

1. Blow moulding machine 1,000-24,000bph, and 0.25-2L PET bottles are available.

2. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle, etc.

3. The man-machine interface is highly automated and easy to operate.

4. The compact machine occupies a smaller area.

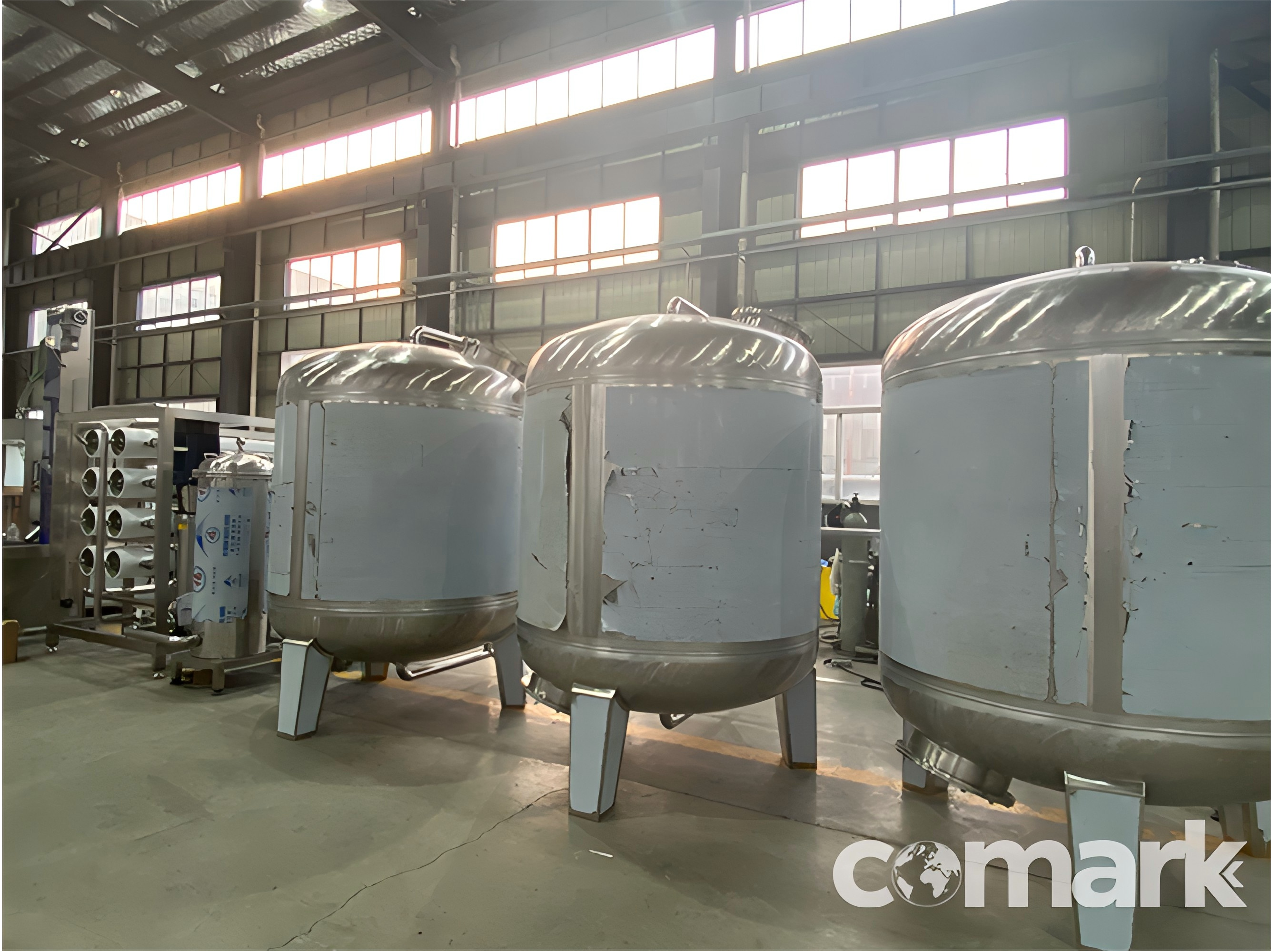

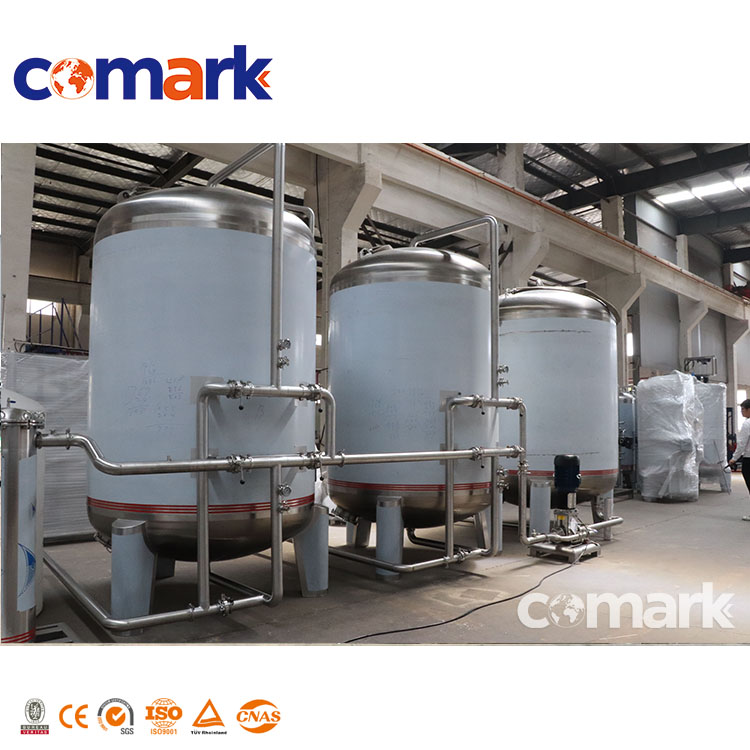

Water treatment system

1. Pre-treatment system (water tank / multi-medium filter / active carbon filter / ion exchanger / precious filter)

2. Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)

3. Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.

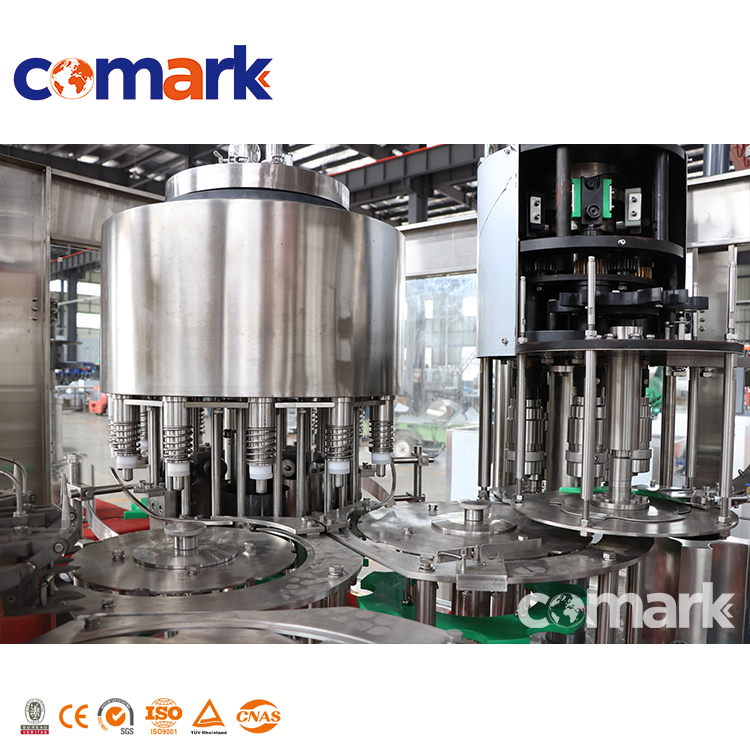

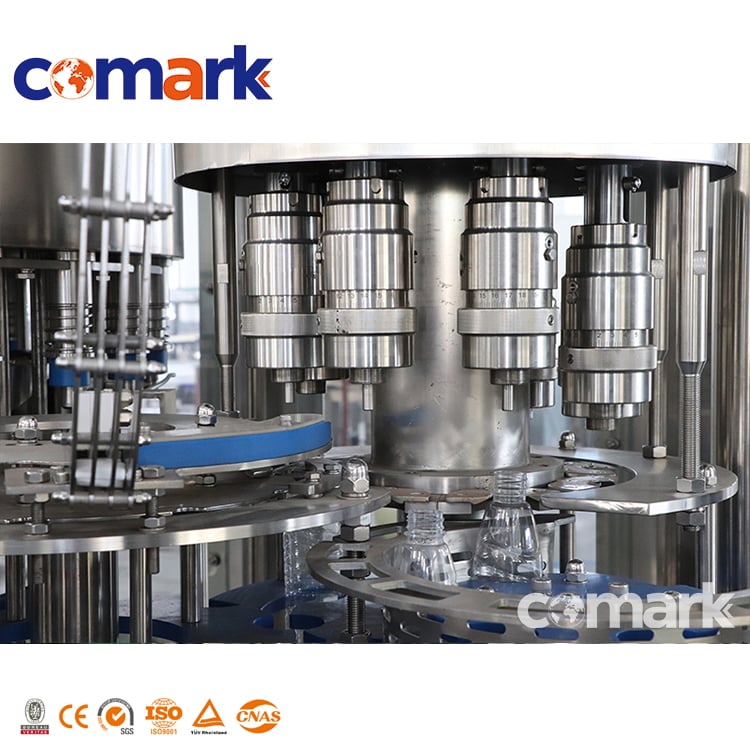

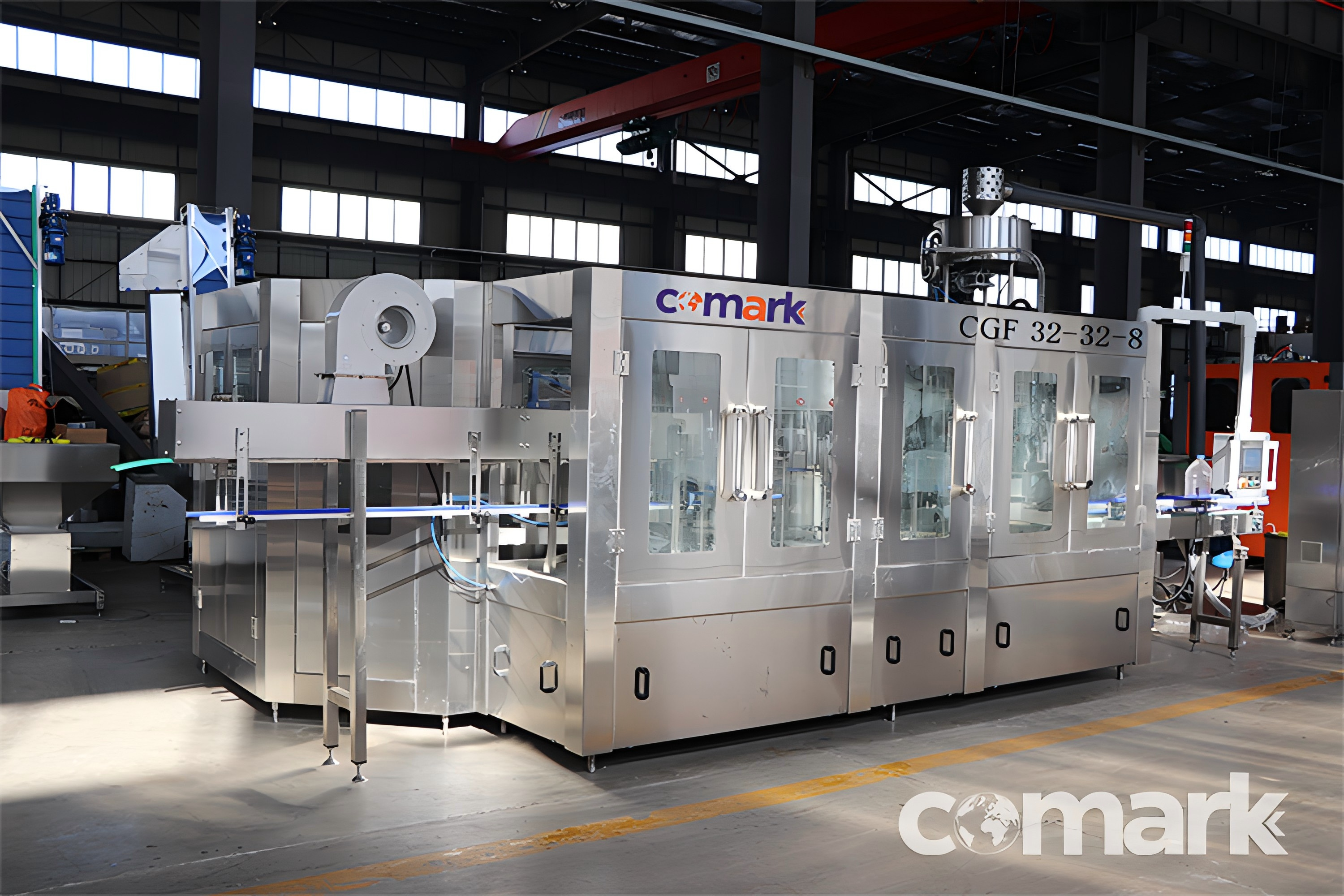

Bottle washing filling and capping machine

1.Water filling line production capacity is usual in 1,000-36,000bph, 0.25-2.5L PET bottles are available.
2.Water filling line can apply to fill fruit juice, energy drink, hot tea drink into PET bottle by changing few spare parts.
3.Automatic water filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly made of SUS304/ SUS316.

Laser Printer Machine

1. Good beam quality, TEM00 single mode output, beam diameter 10mm after collimation, M2<1.3, beam divergence Angle 0.24mrad;

2. Main-oscillation power amplification technology without maintenance and pulse generation technology of seed light source;High reliability, average no fault

Opp hot glue labeling machine

1.This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label.

2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating.

PE film shrink wrapping machine

1. PE film shrink wrapping machine is suitable for wrapping of such products as mineral water, bottles beer, drinks etc without bottom-tray (or with bottom-tray).

2. Working with PE shrink tunnel to pack the goods perfectly. The whole producing process adopt the Germany advanced technics.

FAQ

Q:If we purchase machines, what can you provide for us?
A1:We can provide whole solutions.We have professional engineer who analysis production demand based on customer market demand and customer budget .
A2:We have the bottle shape design according to customer inquire. We also can provide the machines layout for you according your factory figure plan.
A3:We will send our professional engineer to your factory as soon as you get all your machines ready, for installation, testing and teaching your technicians how to run the machines.
