Automatic Complete Plant A To Z Aluminium Beverage Canning Line
We provide the complete pop cans / tin can filling and package solution ,from can depalletizer ,can rinsing machine ,can filling& sealing monoblock machine ,leakage check,liquid nitrogen d...
Description
A To Z Canned Carbonated Beverage Filling Production Line
We provide the complete pop cans / tin can filling and package solution ,from can depalletizer ,can rinsing machine ,can filling& sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,filmpackage system ,which is widely used for the beverage ,beer ,Juice industry and so on
| Model | GD12-1 | GD 12-4 | GD 18-4 | GD 24-6 | GD 32-6 |
| Filling heads | 12 | 12 | 18 | 24 | 32 |
| Capping heads | 1 | 4 | 4 | 6 | 6 |
|
capacity
(can/hour)
|
2000-4000 | 6000-9000 | 6000-9000 | 15000-18000 | 22000-24000 |
| Overall dimension-mm | 2300*1680*2650 | 2500*1760*2650 | 3100*2100*2650 | 3800*2800*2650 | 4000*3300*3400 |
| Weight | 2600kg | 3500kg | 4650kg | 6800kg | 8500kg |
| Application | Wine/Beer/Carbonated drinks | ||||
| Suitable bottle |
Aluminum Can Circular
H=150-320, D=50-120 (250-750ml)
|
||||
About Water Treatment System
Pre-treatment system (water tank / multi-medium filter / active carbon filter / ion exchanger / precious filter)
* Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)
*Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.
About Beverage Mixing System
* The beverage processing system applies to beverage processing for hot filling line and CSD filling line.
* product's scope hot water system, sugar dissolving system ( simple syrup system ), concentrate system, blending system (final syrup system), CIP system, extraction system, kind of storage tank / valves / pipe / fittings, UHT system (plate / tubular type), and carbo-cooler / mixer (manual / automatic).

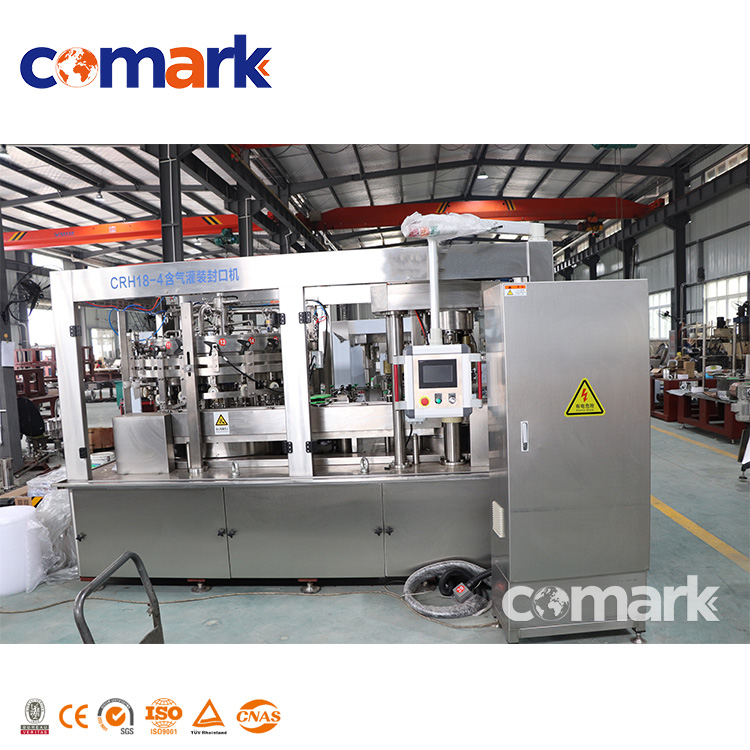

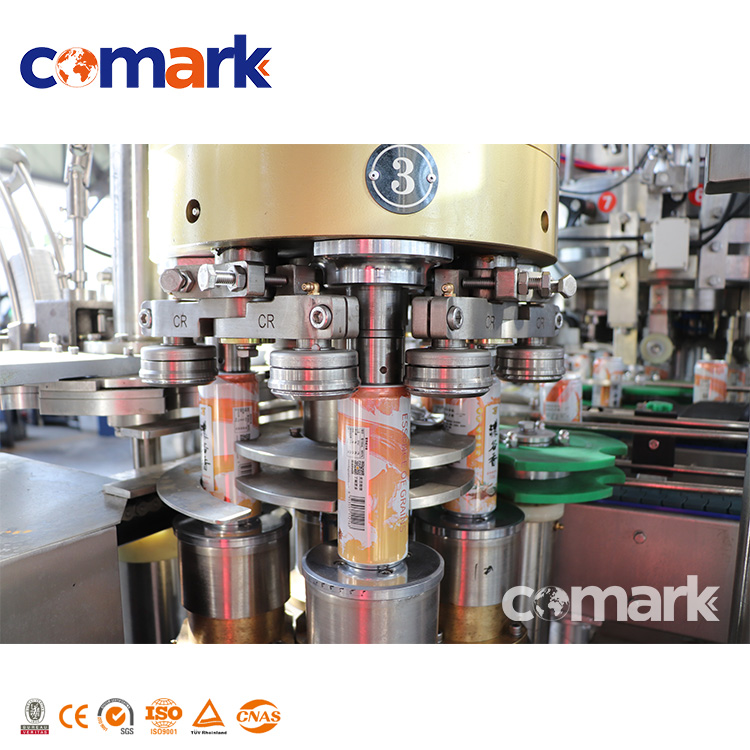

About Can 2 In 1 Filling And Sealing Machine
* All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
* Automatic stop when lip leakage
* Sealingeffect is stable and reliable, Defective rate ≤0.1％
* It can be designed and made to the sterilization conditions and production provided by the customer.
food, etc.
*Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.
*Easy to operate and look elegant appearance.
* Compact &artistic shape. The frame is novel, unique.
*Electronic induction feeding film, action is balanced and quickly replacing film.
* Isothermal sealing cutter .The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
*Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.
*The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
