Adhesive Sticker Labeling Machine
COMARK offers high-quality adhesive sticker labeling machines for bottles and cans, ensuring precision and efficiency in your packaging line. Optimize your production with our durable and reliable equipment.
Description

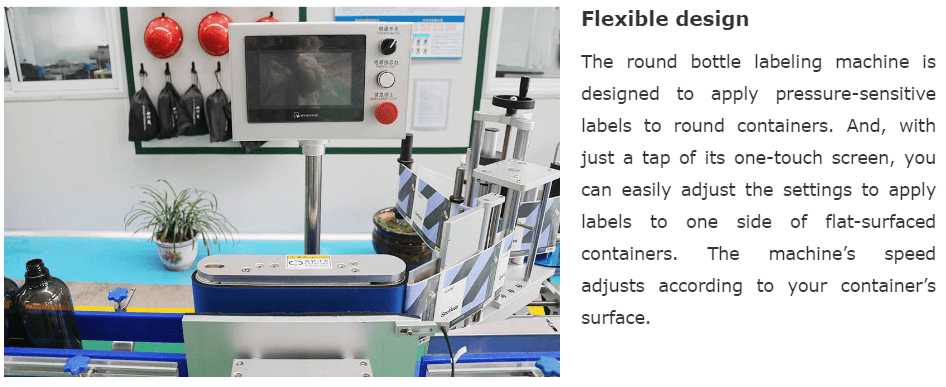

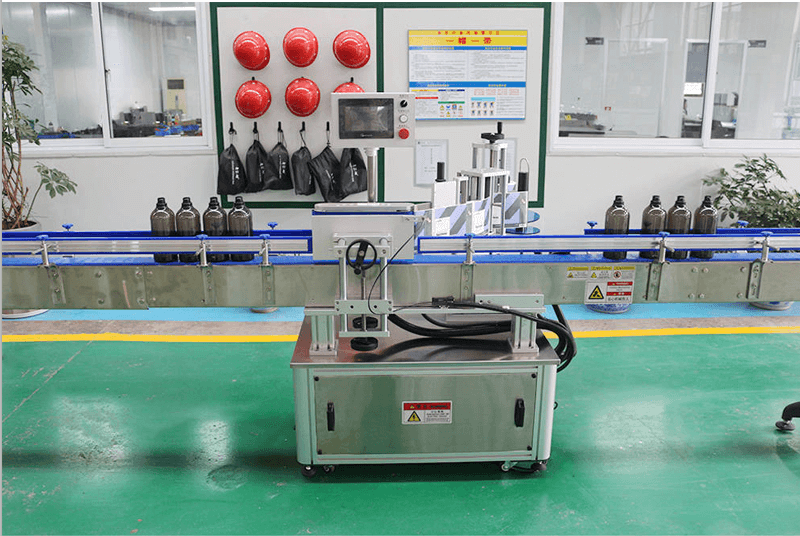

Round bottle adhesive sticker labeling machine

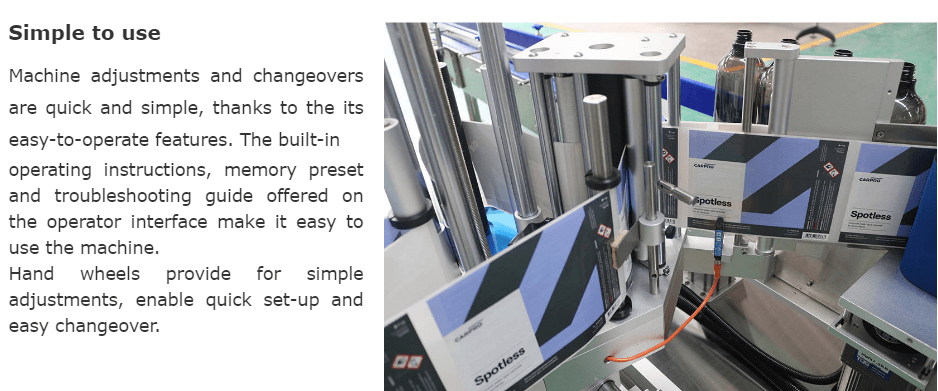

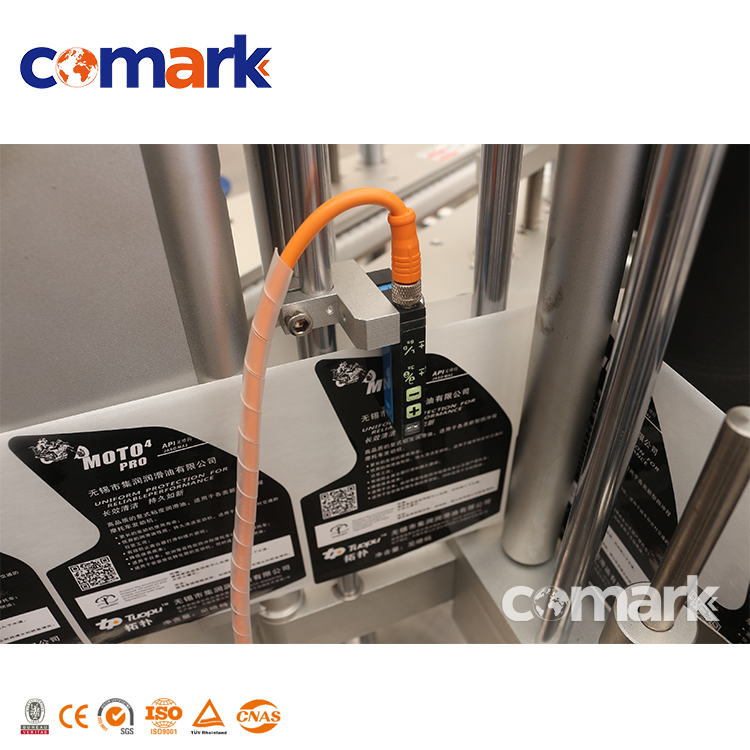

Round bottle sticker labelling machine incorporates latest sophisticated User Friendly Label Dispensing applicator System with choice of Stepper or Servo Driven System. Machine with High speed Label Sensor Facility and unique Product Sensor which does not require any Teaching or settings. The Machine is suitable for Labelling on Round Vials, Bottle, Jars and other round objects. It is available with speed range of 1-30 Products per minute depending on product diameter and label size
|
1. Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for yearsof dependable service.
|
|
|

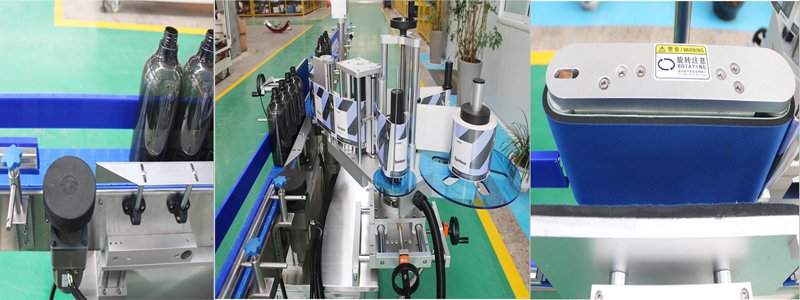

2. Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds.
|
|
|

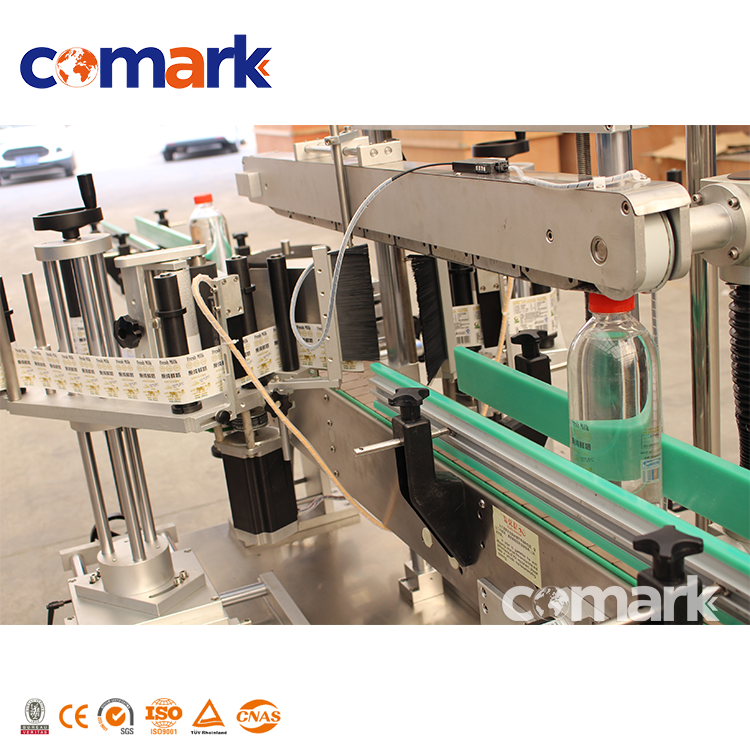

3. Advanced high torque micro-stepping driven applicators include ratio-offset and speed-following capability for accurate and reliable application of a wide variety of label materials.
|
|
|

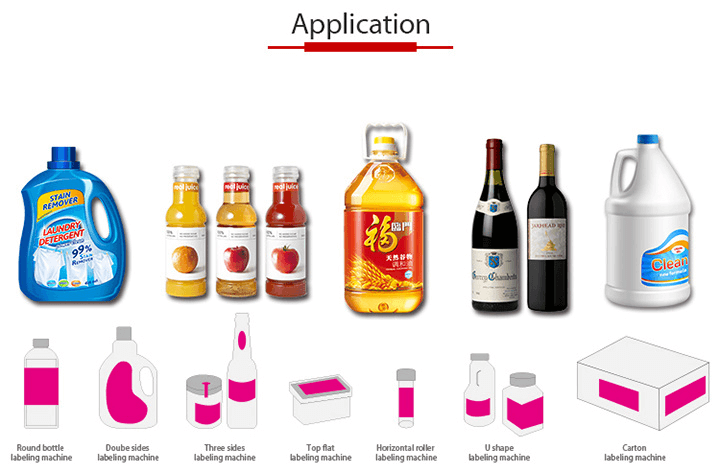

4. Designed for the application of front and/or back panel labels with the capability to label containers that are round, square,oval or rectangular.
|
Configuration
|
No
|
Item
|
Parameter Data
|
|
1
|
Main Material
|
Stainless Steel 304, Aluminum Alloy 6061
|
|
2
|
Dimension
|
L 2100mm * W 900mm * H 1400mm
|
|
3
|
Voltage
|
220V/50Hz
|
|
4
|
Power
|
2200 W
|
|
5
|
Production Capacity
|
0-30m/min
|
|
6
|
Labeling Accuracy
|
+/- 1mm beak edge
|
|
7
|
Label Roll Core
|
76 mm
|
|
8
|
Label Roll Diameter
|
350 mm
|
|
9
|
Label Width
|
10~110 mm (special size can be customized)
|
|
10
|
Label Length
|
20~360 mm (special size can be customized)
|
|
11
|
Bottle Diameter
|
30~90 mm (special size can be customized)
|
|
12
|
Bottle Height
|
30~200 mm (special size can be customized)
|
