4000BPH Automatic Pure Water Complete Line Bottling Machine
Description

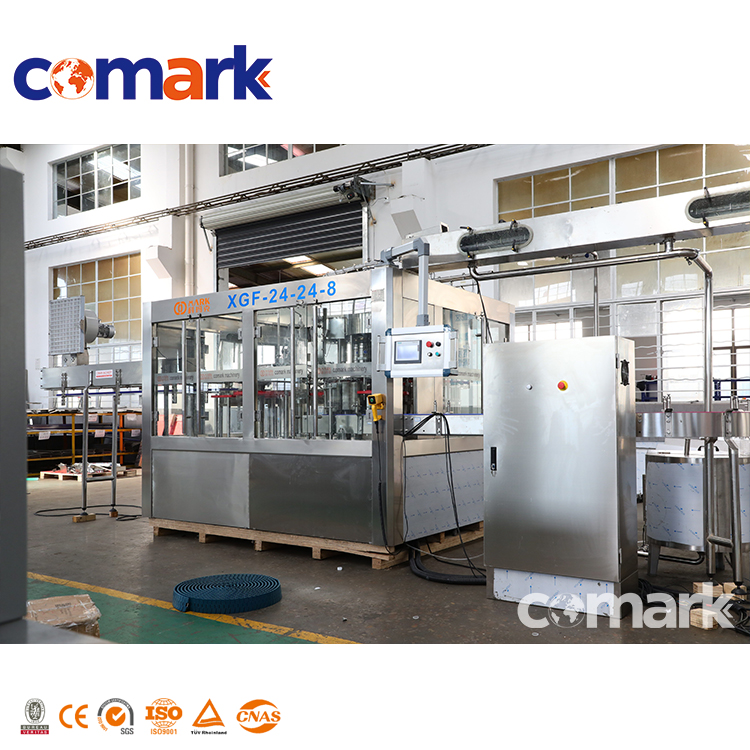

4000BPH Automatic Pure Water Complete Line Bottling Machine

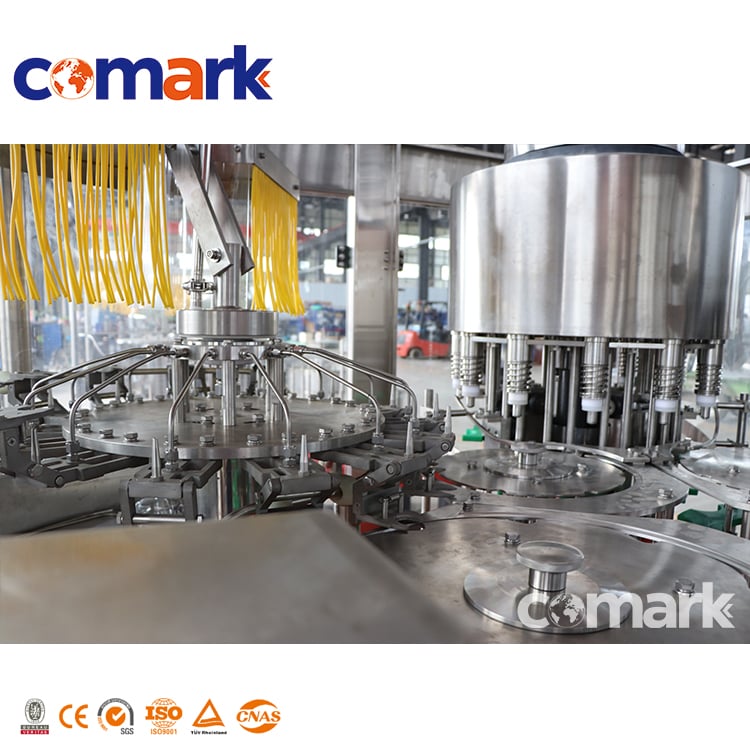

The machine combines washing, filling and capping three function in a body,used to produce plastic bottled mineral water,purified water machinery. The whole process is automatic, Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient. The CGF series bottled water filling line can achieve different output: 2000 / 4000 / 6000 / 8000 / 10000 / 12000 / 16000 /18000 /20000 / 24000 BPH.
Product Paramenters
| Model |
CGF 8-8-3 |
CGF
14-12-5
|
CGF 16-16-5 |
CGF 18-18-6 |
CGF 24-24-8 |
CGF 32-32-8 |
CGF 40-40-10 |
CGF 50-50-15 |
|
Capacity ( for 500ml ) |
2000 BPH | 4000 BPH |
8000 BPH | 6000 BPH |
10000 BPH | 15000 BPH | 20000 BPH |
24000 BPH |
| Suitable bottle shapes | PET Circular or square | |||||||
| Bottle diamater | 50-120 MM | |||||||
| Bottle Height | 150-320 MM | |||||||
| Compressor air | 0.3-0.7 Mpa | |||||||
| Washing Medium | Aspetic Water | |||||||
| Washing pressure | 0.06-0.2mpa | |||||||
| Power | 3.01 kw | 3.75 kw | 5.05 kw | 5.03 kw | 6.57 kw | 8.63 kw | 10.68 kw | 12 kw |
| Weight | 2000kg | 2000kg | 3800kg | 2500kg | 4200kg | 6000kg | 7000kg | 9000kg |
The complete production line:
☑PET bottle blow molding machine
☑Water treatment system
☑Bottle washing filling and capping machine
☑Ink code printer / Laser code printer
☑PVC shrink sleeve / OPP hot glue / Adhesive sticker labeling machine
☑PE film packaging machine / Carton packaging machine
☑Automatic palletizer

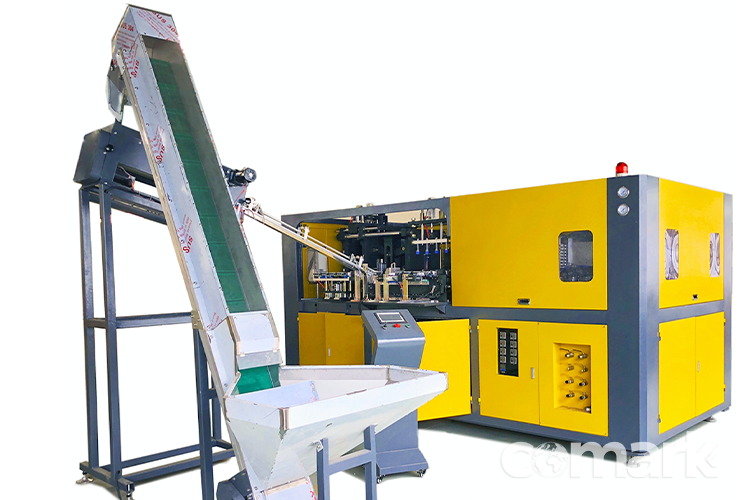

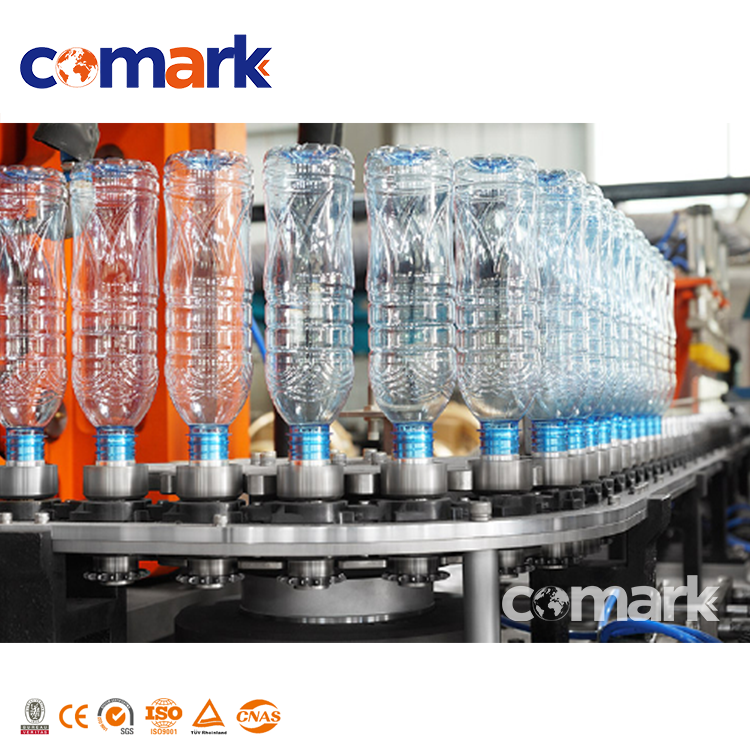

PET bottle blow molding machine
1. Blow moulding machine 1,000-24,000bph, and 0.25-2L PET bottles are available.
2. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle, etc.
3. The man-machine interface is highly automated and easy to operate.
4. The compact machine occupies a smaller area.

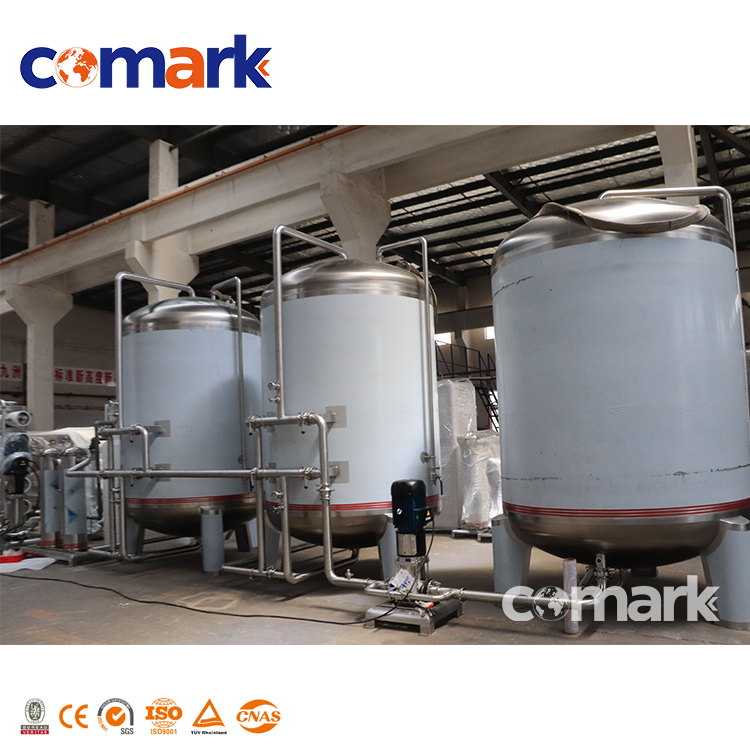

Water treatment system
1. Pre-treatment system (water tank / multi-medium filter / active carbon filter / ion exchanger / precious filter)
2. Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)
3. Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.

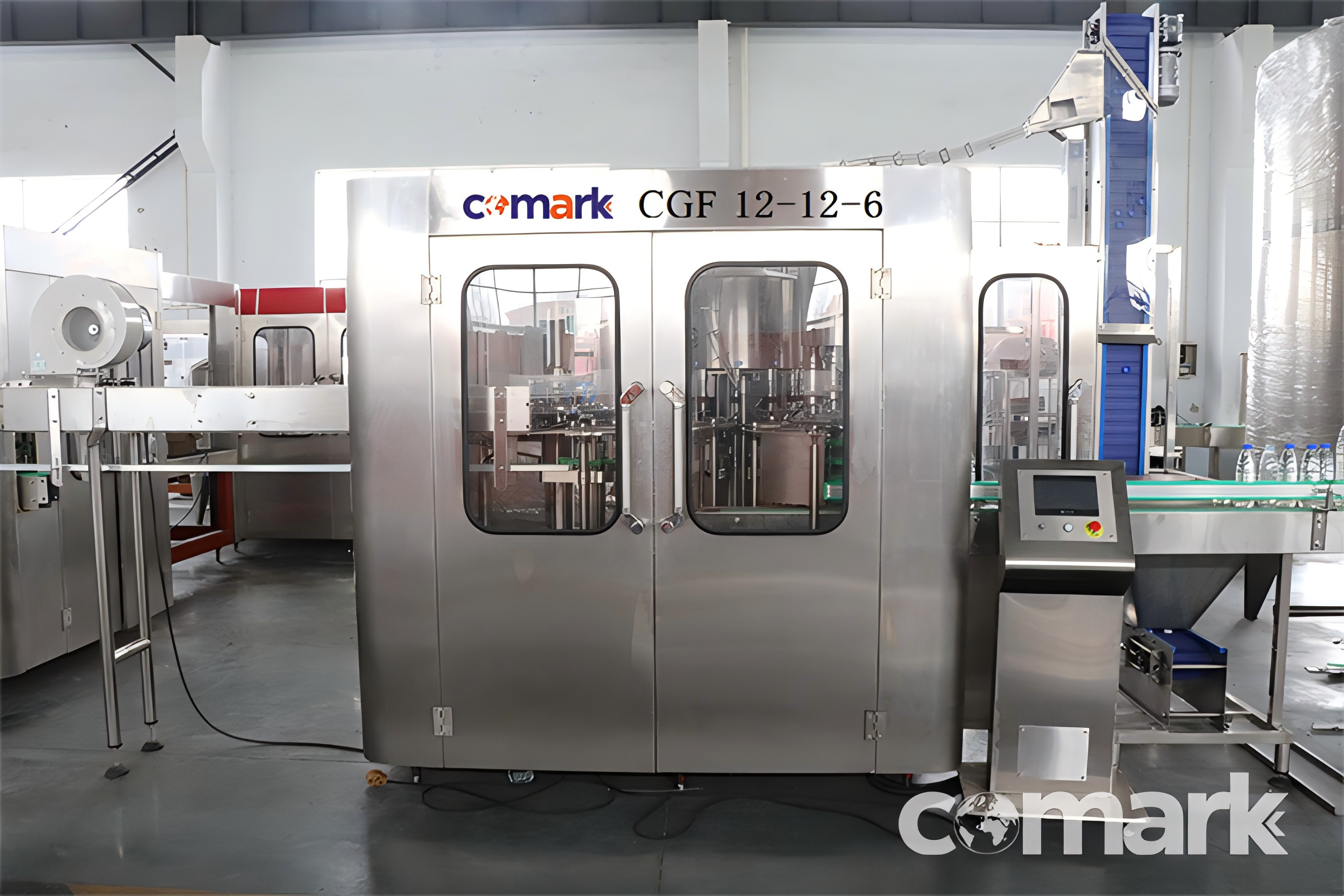

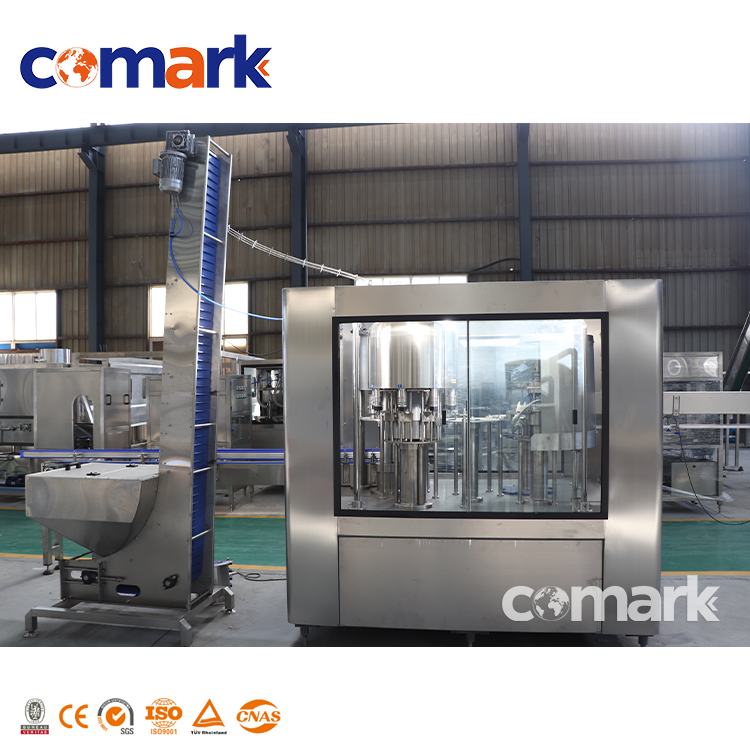

Bottle washing filling and capping machine1.Water filling line production capacity is usual in 1,000-36,000bph, 0.25-2.5L PET bottles are available.
2.Water filling line can apply to fill fruit juice, energy drink, hot tea drink into PET bottle by changing few spare parts.
3.Automatic water filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly made of SUS304/ SUS316.
Laser Printer Machine
1. Good beam quality, TEM00 single mode output, beam diameter 10mm after collimation, M2<1.3, beam divergence Angle 0.24mrad;
2. Main-oscillation power amplification technology without maintenance and pulse generation technology of seed light source;High reliability, average no fault
PVC shrink sleeve labeling machine
1. The machine can be used for various bottle types, such as: round bottle, flat bottle, and so on.
2. Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.
3. High speed, high accuracy, stable performance.

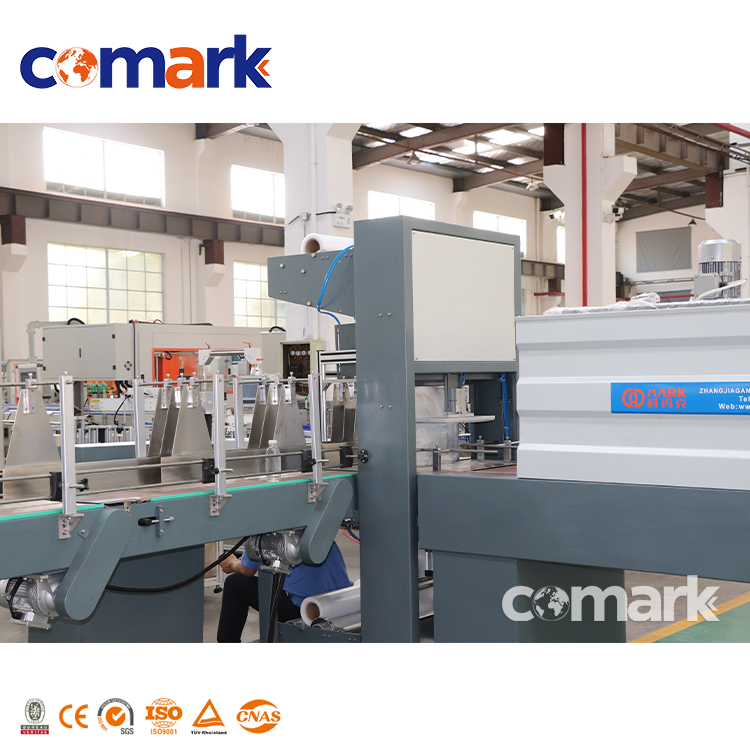

PE film shrink wrapping machine
1. PE film shrink wrapping machine is suitable for wrapping of such products as mineral water, bottles beer, drinks etc without bottom-tray (or with bottom-tray).
2. Working with PE shrink tunnel to pack the goods perfectly. The whole producing process adopt the Germany advanced technics.
