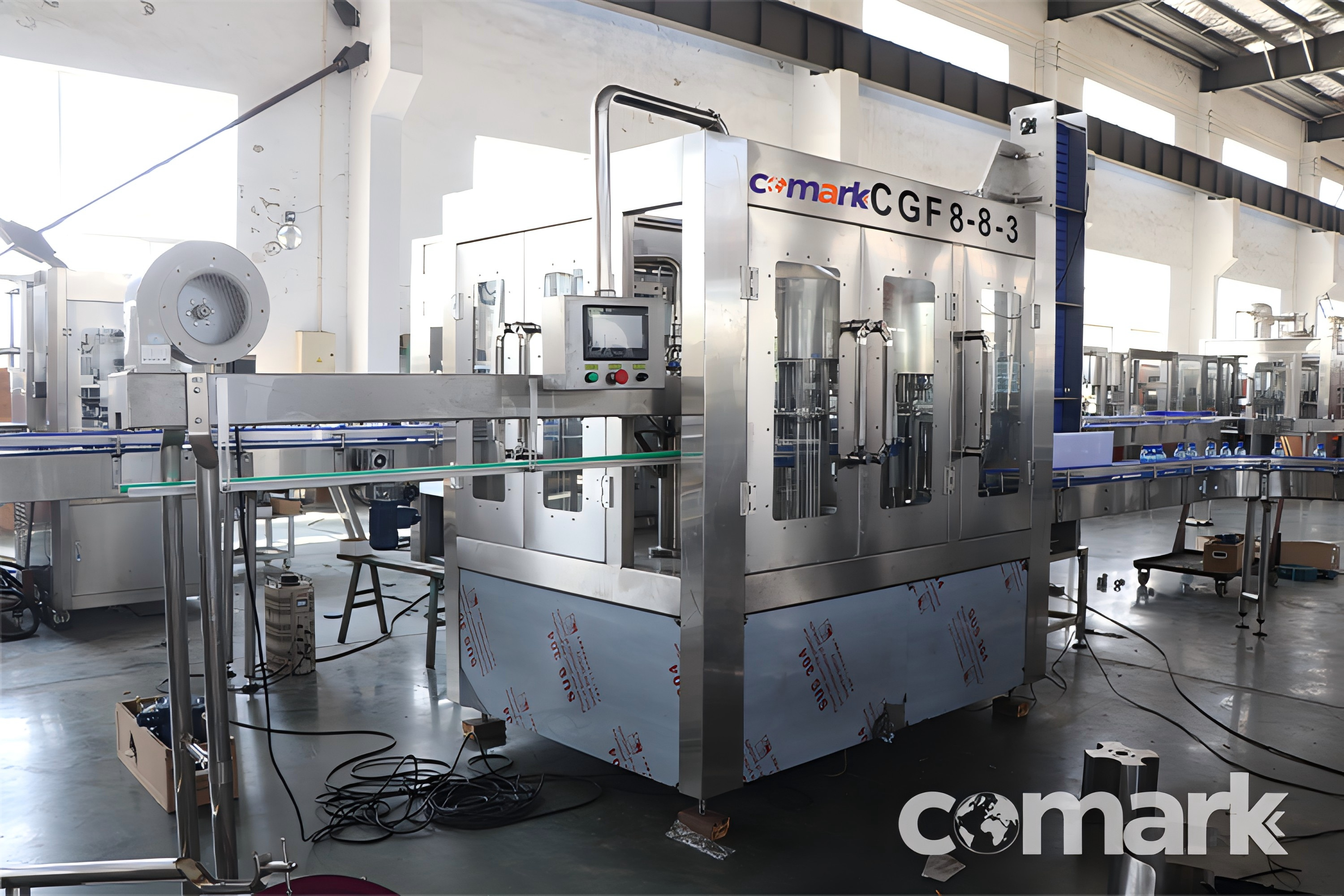

2000 -3000 BPH for 500ml Small Scale Mineral Water Plant (CGF8-8-3)

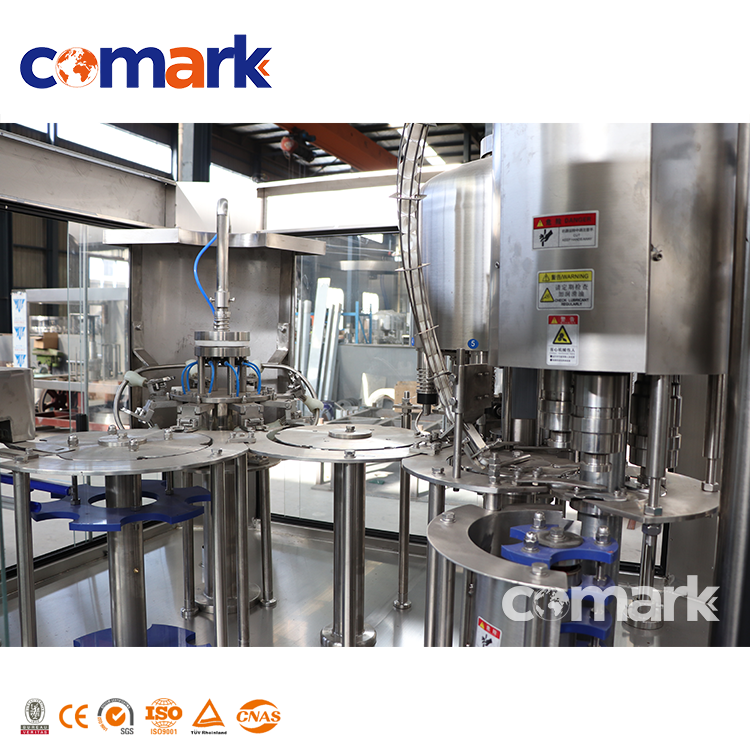

This automatic mineral water filling machine mainly used in the water filling operations, the three function of bottle washing, filling and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turnked to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology, The famous brand programeed controller (PLC) is adopted to control the machine runs automatically. It is an ideal perferred equipment for beverage maker.

Application

Technical Date

Details

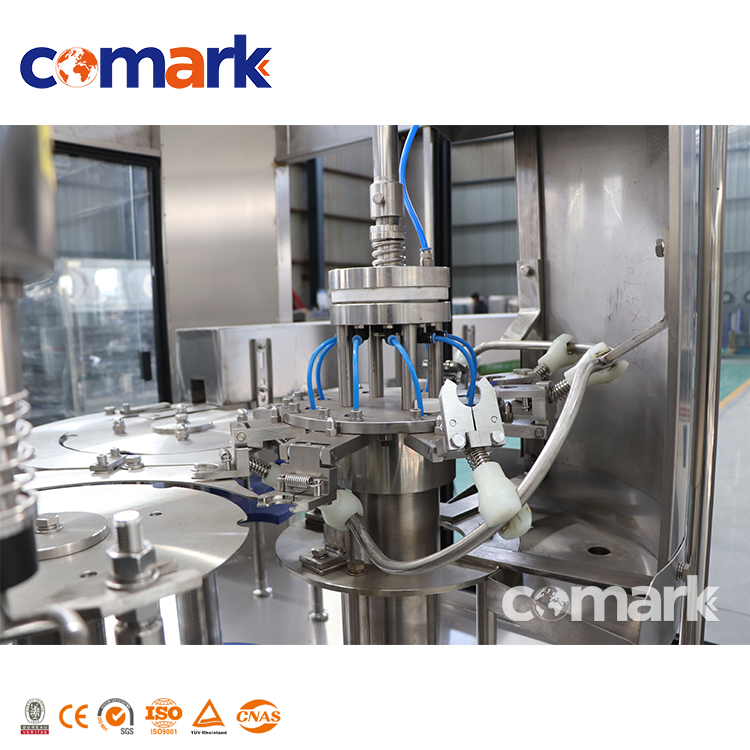

• Washing head

1. The rotary wheel is a fully stainless steel welded structure.

2. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

3. The rinser is driven by driving system positioned inside machine frame via gear transmission.

• Filling head

1. Rotary wheel fully made of stainless steel SUS 304.

2. Filling valves are made of SUS316.

3. Filling valves are reasonably structured with accurate filling.

4. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

• Capping head

1. Efficient centrifugal cap sorting method, with less cap abrasion.

2. Magnetic constant torque capping head, the capping effect is stable and reliable, and the capping defective rate is less than 0.2%.

3. No bottle, no capping.

4. High precision, stable.

5. All 304stainless steel construction.

Production Line

Detail images

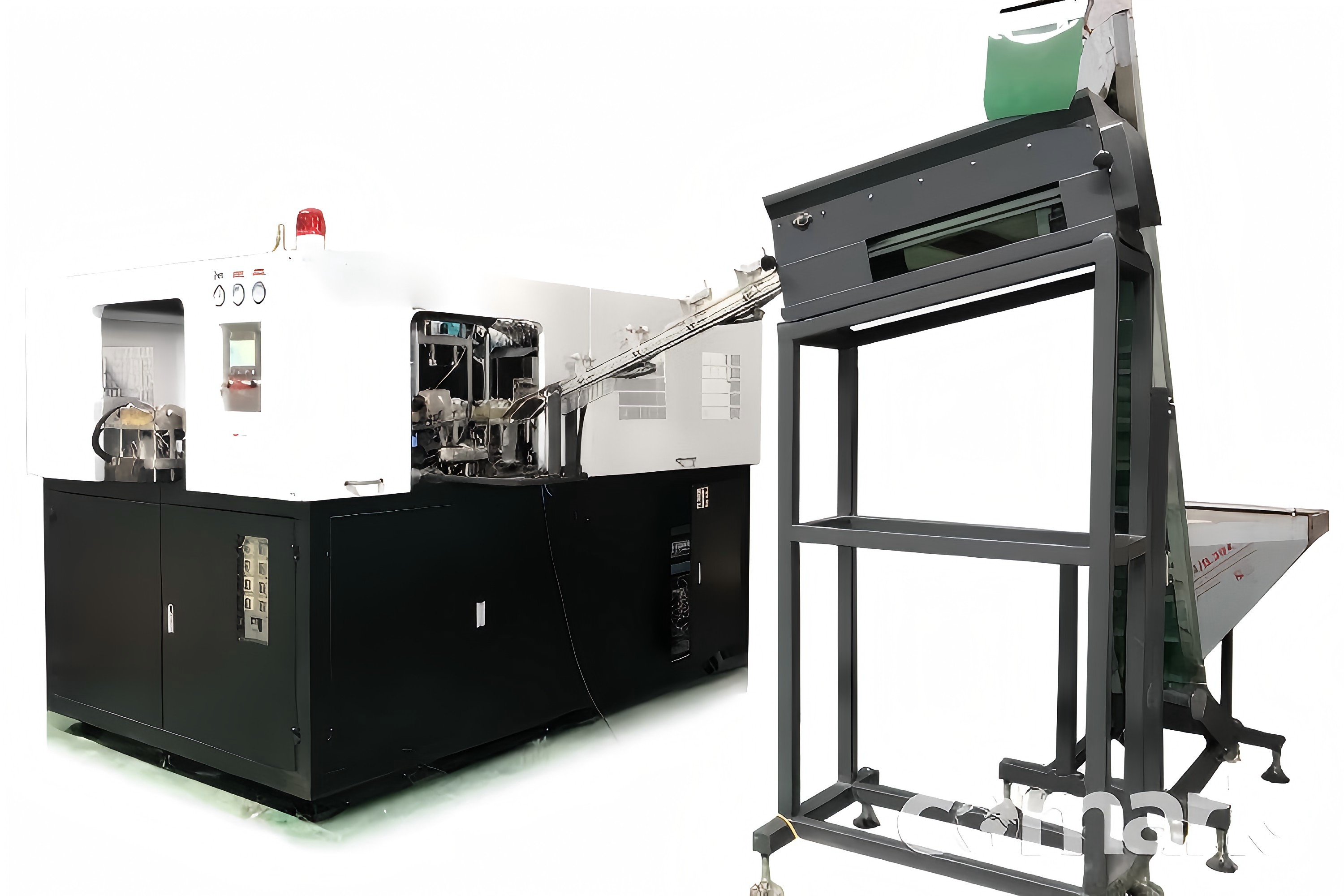

• PET bottle blow molding machine

1. Blow moulding machine 1,000-24,000bph, and 0.25-2L PET bottles are available.

2. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle, etc.

3. The man-machine interface is highly automated and easy to operate.

4. The compact machine occupies a smaller area.

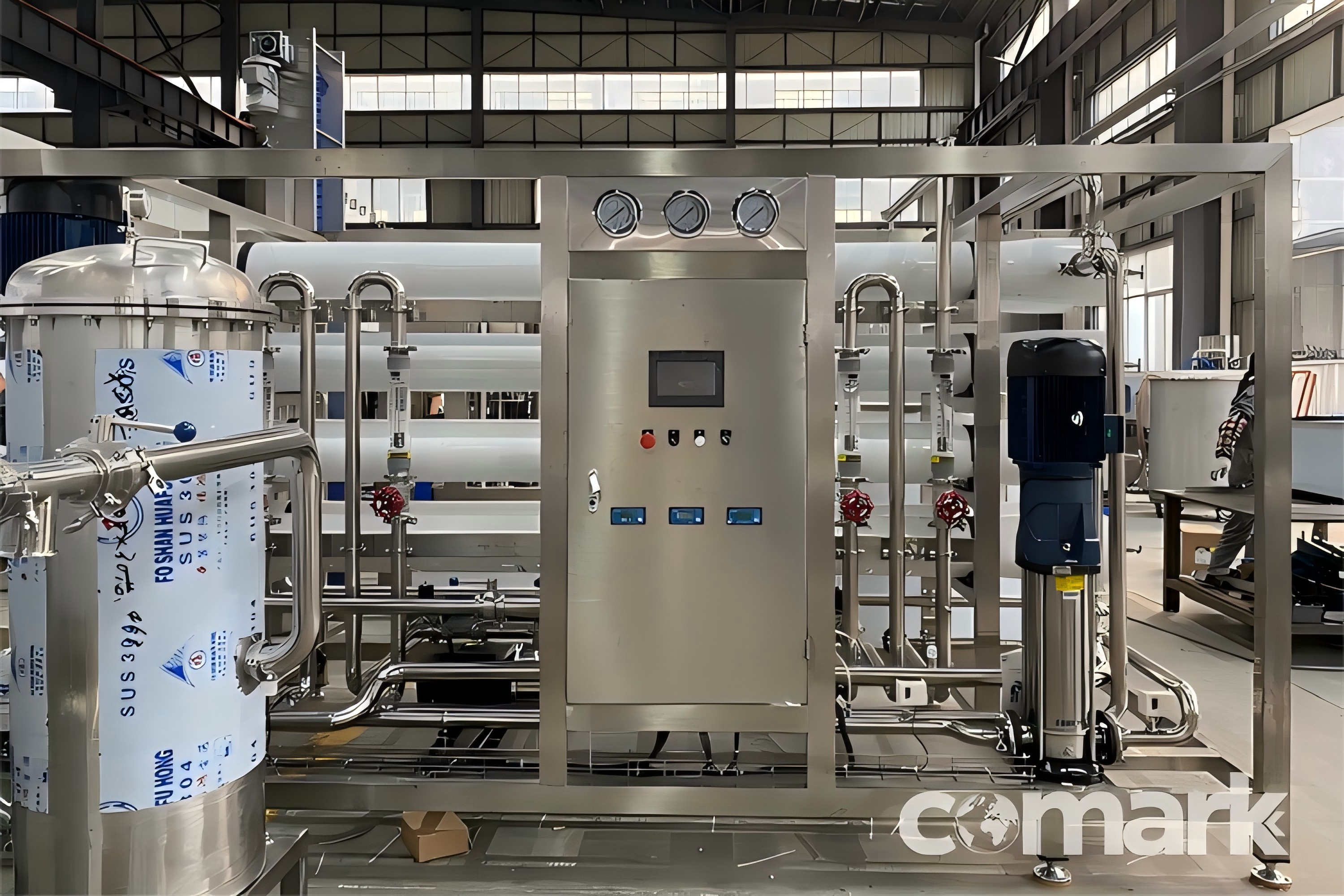

• Water treatment system

1. Pre-treatment system (water tank / multi-medium filter / active carbon filter / ion exchanger / precious filter)

2. Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)

3. Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.

• Blow Dryer

1.This machine installed after the filling machine.

2. This machine is used to removing the water outside the bottle surface, the blowing capacity can be adjusted through the button.

• Laser Printer Machine

1. Good beam quality, TEM00 single mode output, beam diameter 10mm after collimation, M2<1.3, beam divergence Angle 0.24mrad;

2. Main-oscillation power amplification technology without maintenance and pulse generation technology of seed light source;High reliability, average no fault

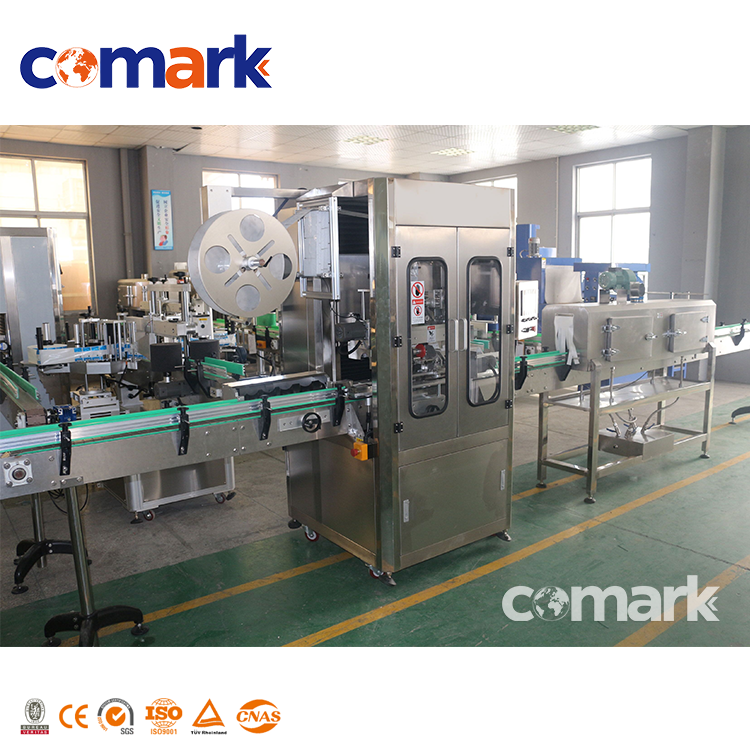

• PVC shrink sleeve labeling machine

1. The machine can be used for various bottle types, such as: round bottle, flat bottle, and so on.

2. Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.

3. High speed, high accuracy, stable performance.

• PE film shrink wrapping machine

1. PE film shrink wrapping machine is suitable for wrapping of such products as mineral water, bottles beer, drinks etc without bottom-tray (or with bottom-tray).

2. Working with PE shrink tunnel to pack the goods perfectly. The whole producing process adopt the Germany advanced technics.
