16000BPH Soft Drink Spraking Water Beverage Drink Filling Bottling Packaing Line
Description
Simple Use Reliable Automatic Bottle Carbonated Soft Drink Filling Machine Production Line

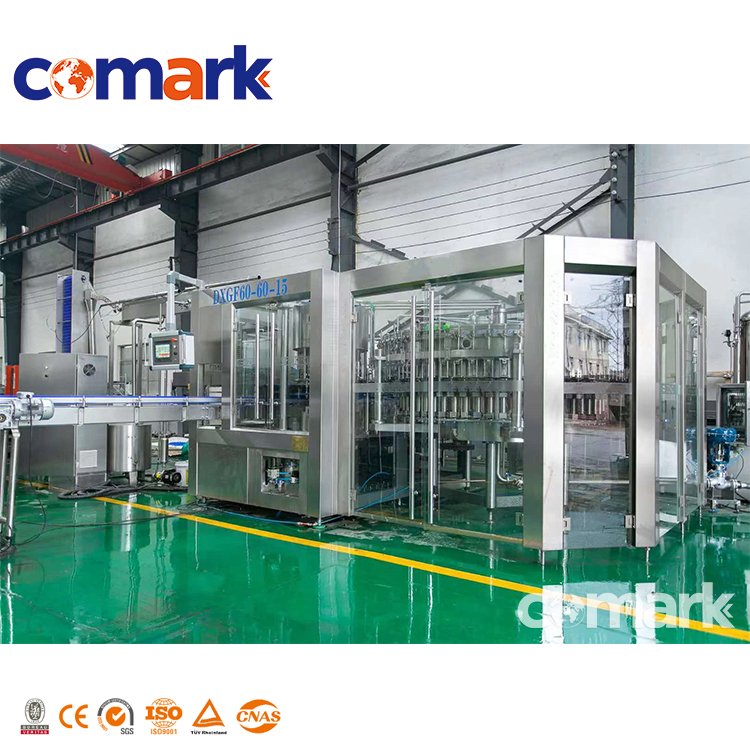

This DCGF Wash-filling-capping 3-in-1 unit: Beverage Machinery is used to produce polyester bottled soft drinks,soda beverage,and other carbonated mixed drinks machinery. The DCGF Wash-filling-capping 3-in-1 unit: Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
The suspending bottle-neck conveyor structure makes the bottles stably during the high speed moving conditions, and make changing bottle model more conveniently. Human machine interface touch-screen and PLC program make it a high degree of automatic production. All parts that have directly contact with the water are made of high quality stainless steel. The main electrical components are from international famous companies, such as Mitsubishi Schneider, Omron.
| Model | DCGF12125 | DCGF18186 | DCGF24248 | DCGF323210 | DCGF404012 | DCGF505012 |
| washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 |
| Production capacity (B/H) | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 |
| Motor power(kw) | 2.2KW | 2.2KW | 3KW | 5.5KW | 7.5KW | 11KW |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 |
- Washing part
1.The rotary wheel is a fully stainless steel welded structure.
2. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
3. The rinser is driven by driving system positioned inside machine frame via gear transmission.
4. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
5. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall,and also saves rinsing water.

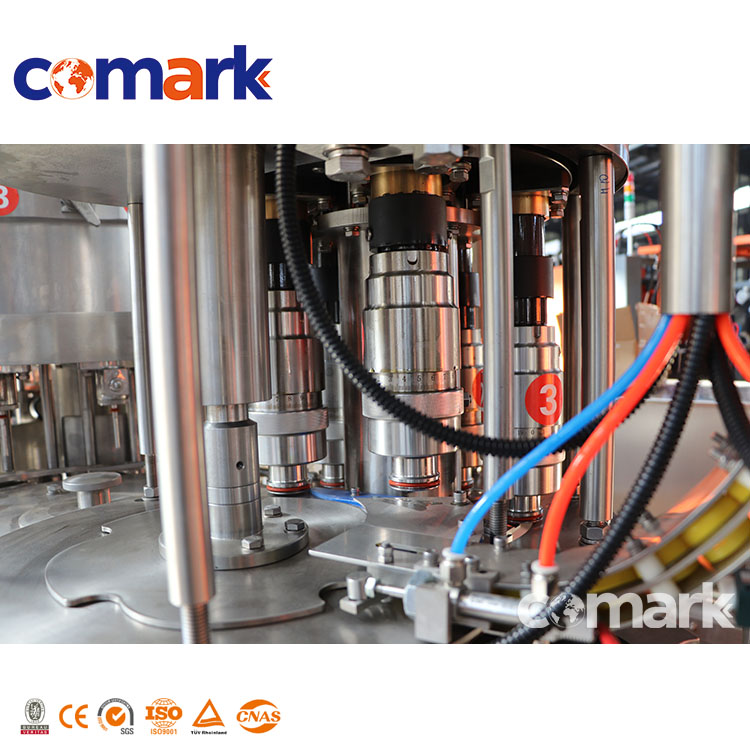

- Filling part
1.Rotary wheel fully made of stainless steel SUS 304.
2. Filling valves are made of SUS316L.
3. Filling valves are reasonably structured with accurate filling.
4. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
5. Level of cylinder is controlled with float-ball.
6. Filler is driven through gears inside the machine frame.
7. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

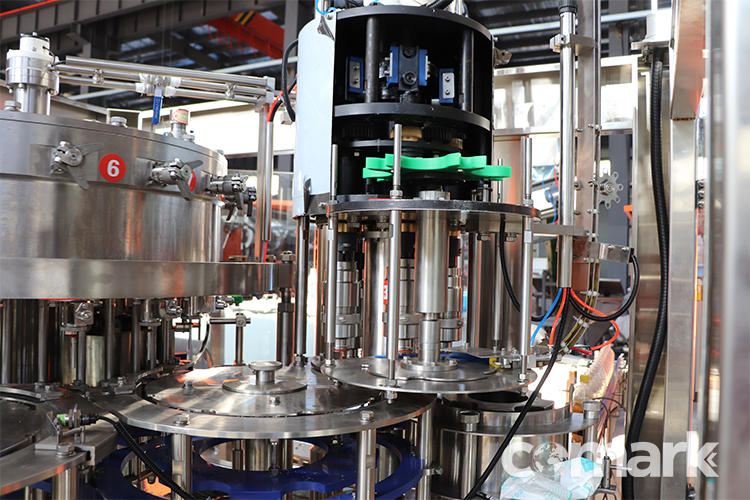

- Capping part

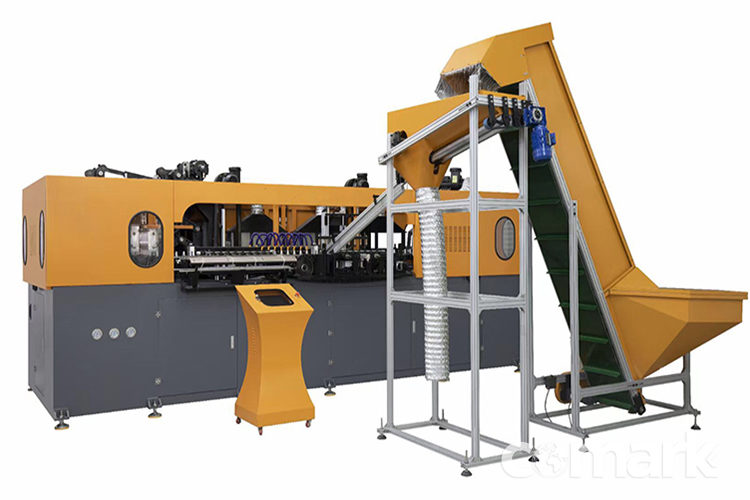

- PET bottle blow molding machine
- Beverage pre-treatment system

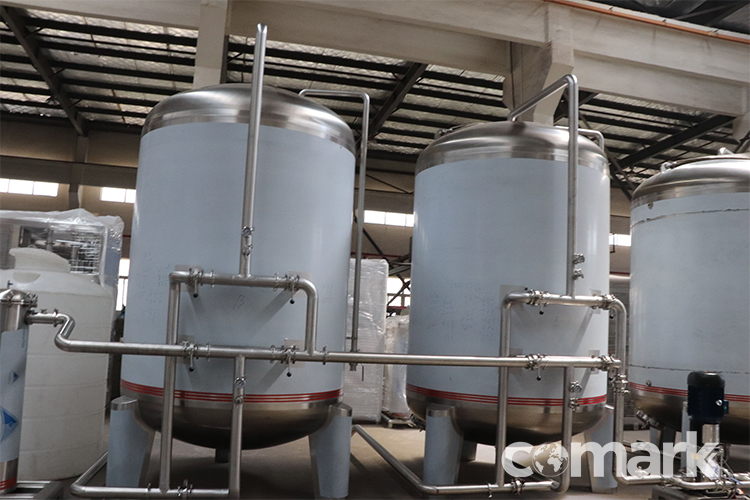

- Water treatment system
- Automatic PVC shrink sleeve labeling machine
- Automatic PE film shrink wrapping machine
